Basic specifications
| model |

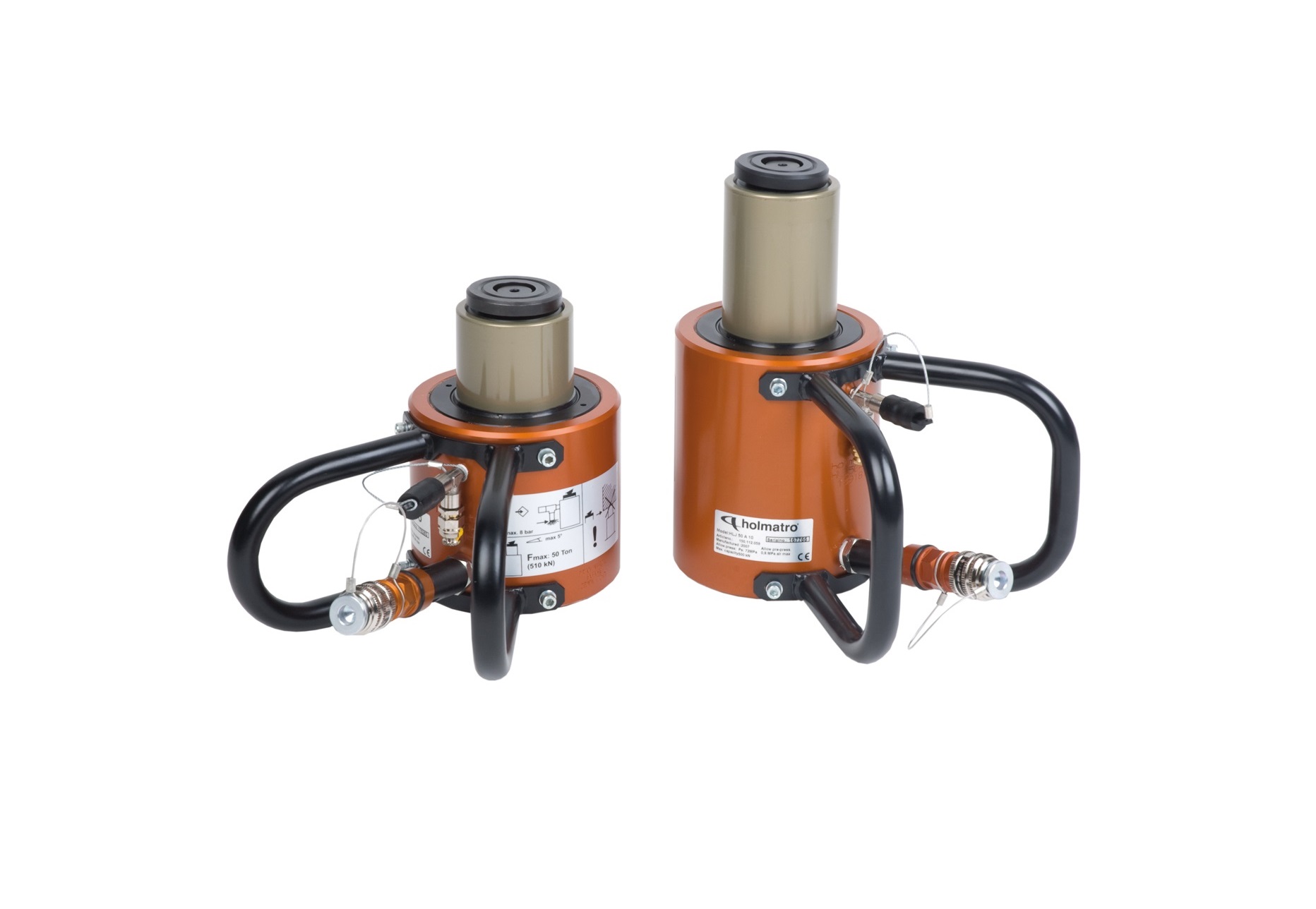

HLJ 50 A 10
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
HLJ50A10
|
Performance
| closed height |
196 mm
|
| closed height |
7,7 in
|
| lifting stroke |
104 mm
|
| lifting stroke |
4,1 in
|
| max. lifting capacity |
510 kN
|
| max. lifting capacity |
52 t
|
| max. lifting capacity |
114.653 lbf
|
| max. lifting capacity |
510 / 52 (kN/t)
|
General specifications
| required oil content (effective) |
709 cc
|
| required oil content (effective) |
24 oz
|
| return type |
air
|
Dimensions, weight and temperature
| weight, ready for use |
8,7 kg
|
| weight, ready for use |
19,2 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
279 x 214 x 196 mm
|
| dimensions (AxBxC) |
11 x 8.4 x 7.7 in
|
