Basic specifications
| model |

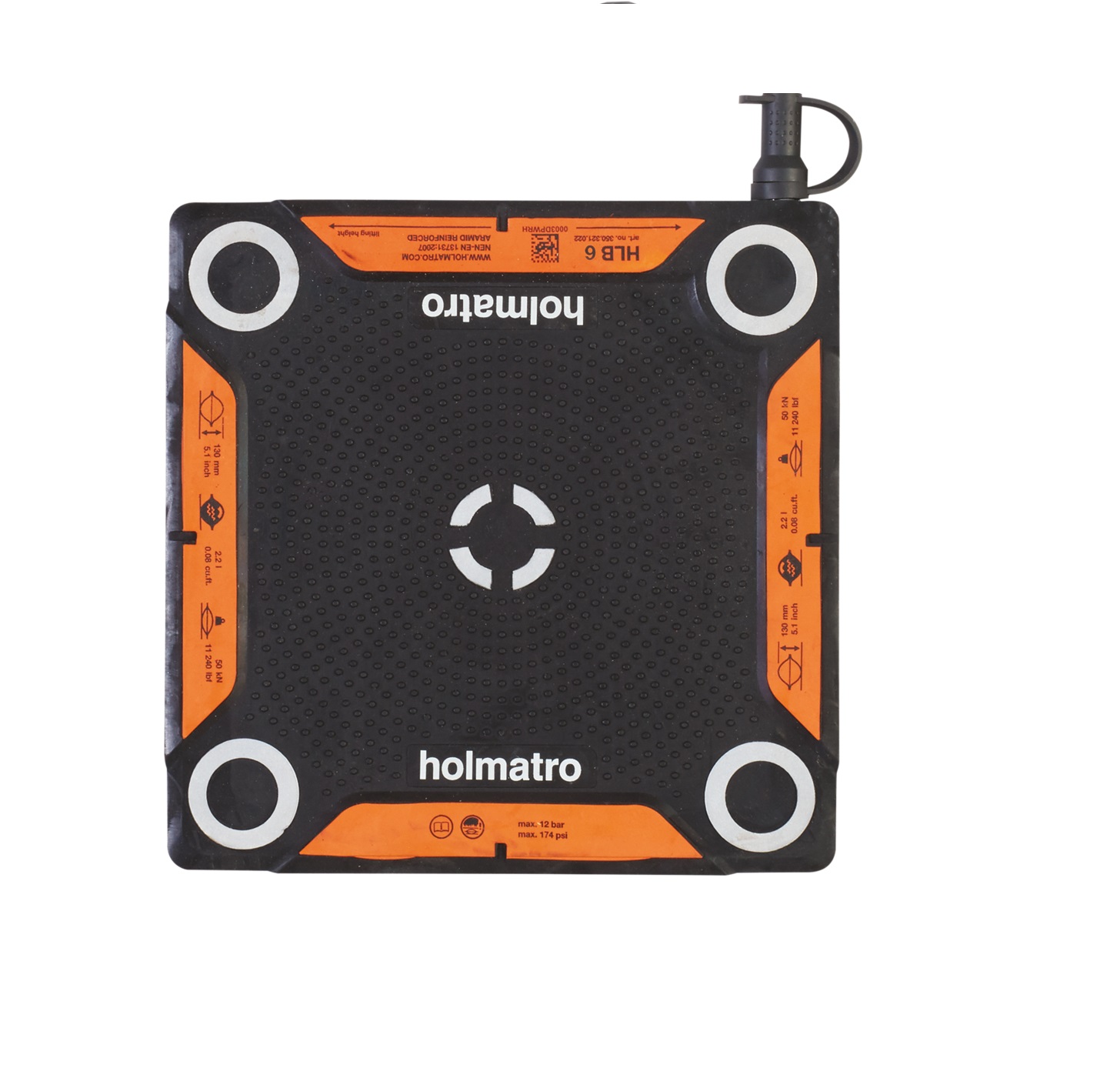

HLB 6
|
| max. working pressure |
174 psi
|
| max. working pressure |
12 / 1.2 (bar/Mpa)
|
| key words |
HLB6
|
Performance
| max. lifting capacity |
55 kN
|
| max. lifting capacity |
5,6 t
|
| max. lifting capacity |
12.364 lbf
|
| max. inflation height |
141 mm
|
| max. inflation height |
5,6 in
|
| thickness incl. profile |
22 mm
|
| thickness incl. profile |
0,9 in
|
| max. lifting capacity |
55 / 5.6 (kN/t)
|
| max. lifting capacity (12 bar/174 psi) |
55 kN
|
| max. lifting capacity (12 bar/174 psi) |
5,6 t
|
| max. lifting capacity (12 bar/174 psi) |
12.364 lbf
|
| max. lifting capacity (12 bar/174 psi) |
55 / 5.6 (kN/t)
|
| max. lifting capacity (8 bar/116 psi) |
37 kN
|
| max. lifting capacity (8 bar/116 psi) |
3,8 t
|
| max. lifting capacity (8 bar/116 psi) |
8.318 lbf
|
| max. lifting capacity (8 bar/116 psi) |
37 / 3.8 (kN/t)
|
General specifications
| air content (12 bar/174 psi) |
26,4 l
|
| air content (12 bar/174 psi) |
7 gal
|
| air content (12 bar/174 psi) |
0,9 cu ft
|
| air content (8 bar/116 psi) |
17,6 l
|
| air content (8 bar/116 psi) |
4,6 gal
|
| air content (8 bar/116 psi) |
0,6 cu ft
|
| water content |
2,2 l
|
| water content |
0,6 gal
|
| water content |
0,1 cu ft
|
| min. bursting pressure |
696 psi
|
| connection |
ISO 6150 C
|
| min. bursting pressure |
48 / 4.8 (bar/Mpa)
|
| material |
reinforced with 3 aramide inlays
|
Dimensions, weight and temperature
| weight, ready for use |
1,6 kg
|
| weight, ready for use |
3,5 lb
|
| dimensions (AxBxC) |
285 x 245 x 22 mm
|
| dimensions (AxBxC) |
11.2 x 9.6 x 0.9 in
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
Norms
| EN 13731 compliant |
Yes
|
