Basic specifications
| model |

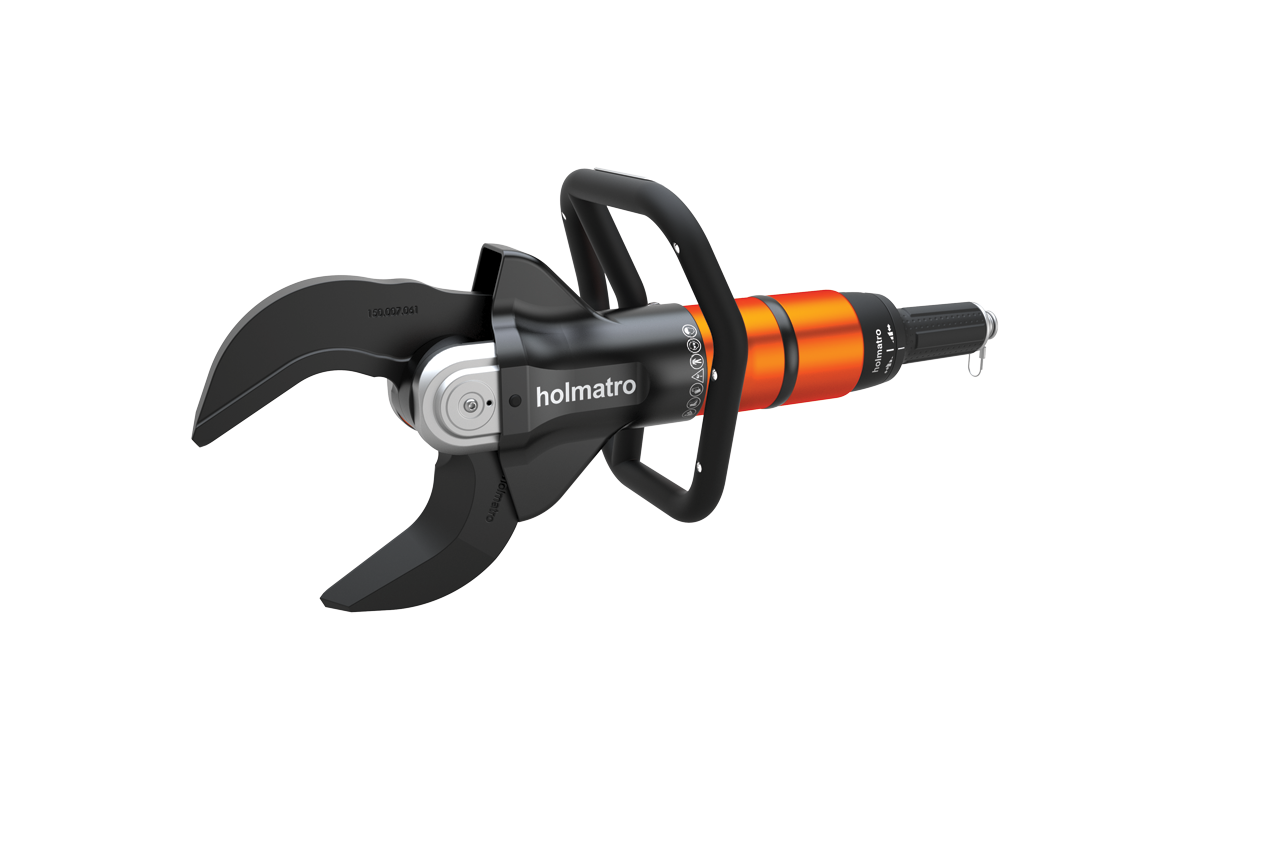

CU 5040 i
|
| equipped with (connector type) |
CORE
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
CU5040i
|
Performance
| max. cutting opening |
170 mm
|
| max. cutting opening |
6,7 in
|
| theoretical cutting force |
171.754 lbf
|
| theoretical cutting force |
764 / 77.9 (kN/t)
|
| vibration level |
<2,5 m/s²
|
| directives |
2006/42/EC
|
General specifications
| required oil content (effective) |
189 cc
|
| required oil content (effective) |
6,4 oz
|
| hydraulic oil type |
ISO-L HV VG 15/22
|
| battery type for light |
AA 1,5 V
|
| NCT |
yes
|
| cutter jaw |
inclined
|
Dimensions, weight and temperature
| weight, ready for use |
13,2 kg
|
| weight, ready for use |
29,1 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
706 x 300 x 262 mm
|
| dimensions (AxBxC) |
27.8 x 11.8 x 10.3 in
|
Safety factors / tests
| hydraulic safety factor |
2:1
|
| endurance test tool |
1000 cycles of biting in material that cannot be cut
|
| endurance test dead man’s handle |
6000 cycles
|
Norms
| EN 13204 compliant |
yes
|
| EN 13204 classification |
BC165I-13.2
|
| EN 13204, cutting capacity |
1I 2I 3I 4J 5J
|
| NFPA 1936 compliant |
yes
|
| NFPA 1936, cutting capacity |
A7 B7 C6 D7 E8
|
Cutting performance
| round bar (S235 acc. to EN 13204) |
36 mm
|
| round bar (S235 acc. to EN 13204) |
1,4 in
|
