Basic specifications
| model |
CU 5060
|
| equipped with (connector type) |
CORE
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
CU5060
|
Performance
| max. cutting opening |
205 mm
|
| max. cutting opening |
8,1 in
|
| theoretical cutting force |
403.082 lbf
|
| theoretical cutting force |
1793 / 182.8 (kN/t)
|
| vibration level |
<2,5 m/s² m/s²
|
| directives |
2006/42/EC
|
General specifications
| required oil content (effective) |
311 cc
|
| required oil content (effective) |
10,5 oz
|
| hydraulic oil type |
ISO-L HV VG 15/22
|
| battery type for light |
AA 1,5 V
|

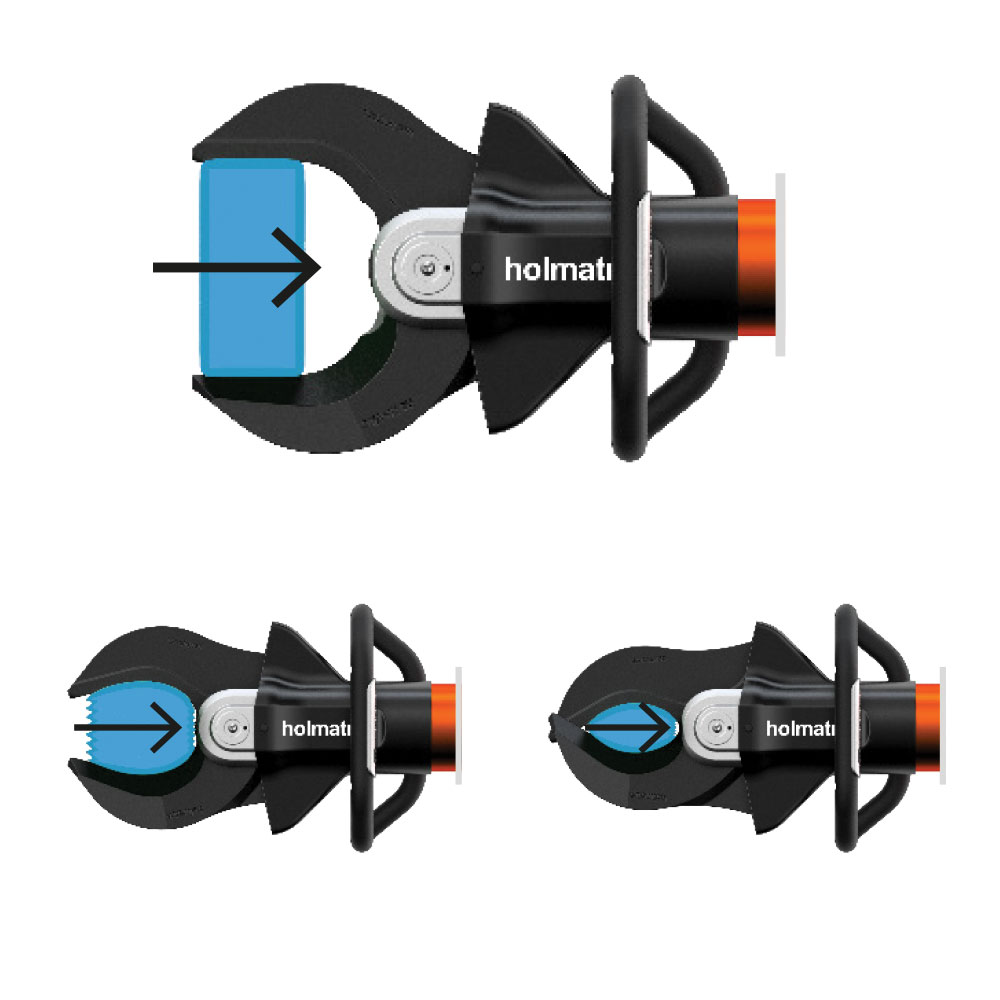

| NCT |
yes
|
| cutter jaw |
straight
|
Dimensions, weight and temperature
| weight, ready for use |
19,6 kg
|
| weight, ready for use |
43,2 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
807 x 321 x 200 mm
|
| dimensions (AxBxC) |
31.8 x 12.6 x 7.9 in
|
Safety factors / tests
| hydraulic safety factor |
2:1
|
| endurance test tool |
1000 cycles of biting in material that cannot be cut
|
| endurance test dead man’s handle |
6000 cycles
|
Norms
| EN 13204 compliant |
yes
|
| EN 13204 classification |
CC205K-19.6
|
| EN 13204, cutting capacity |
1K 2K 3K 4K 5K
|
| NFPA 1936 compliant |
yes
|
| NFPA 1936, cutting capacity |
A9 B9 C9 D9 E9
|
Cutting performance
| round bar (S235 acc. to EN 13204) |
47 mm
|
| round bar (S235 acc. to EN 13204) |
1,9 in
|
