Basic specifications
| model |

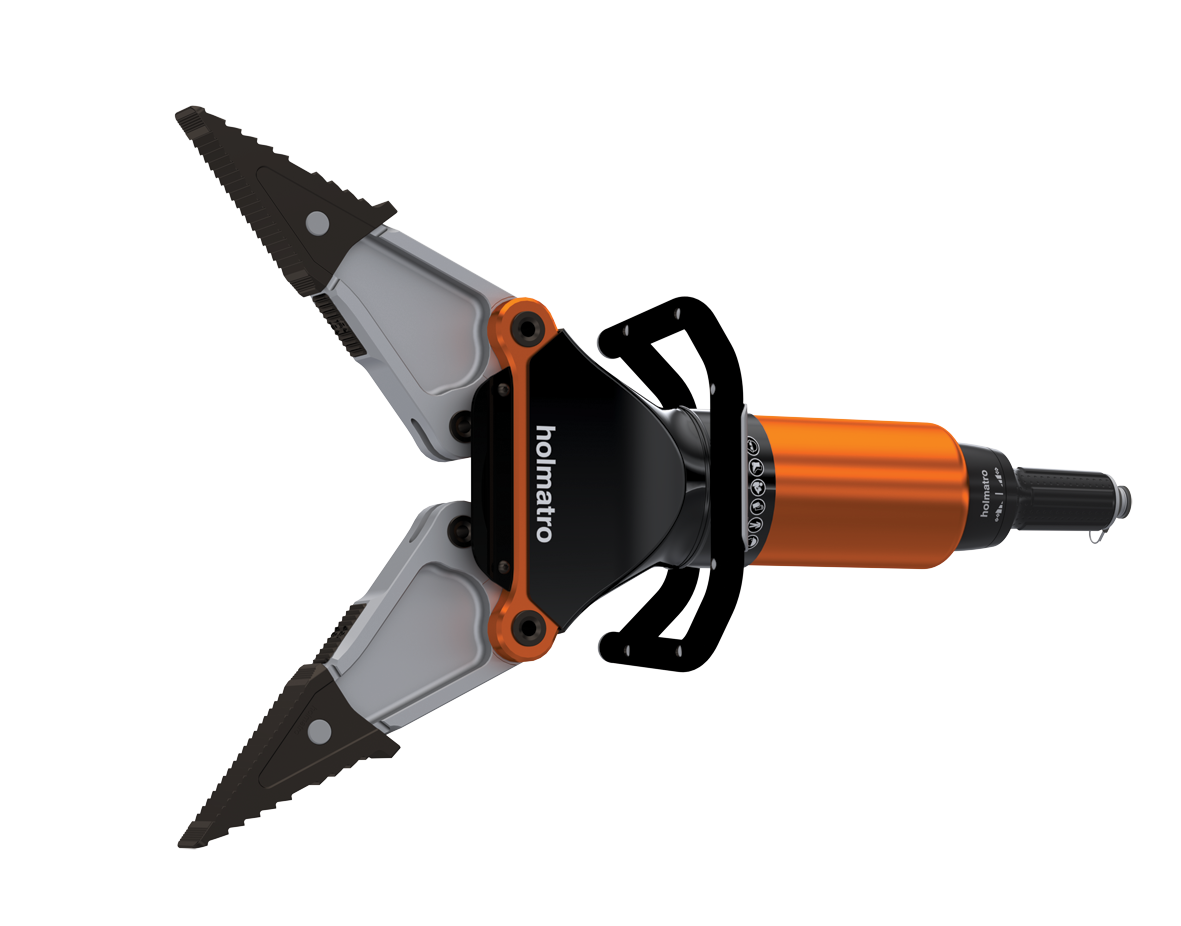

SP 5250
|
| equipped with (connector type) |
CORE
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
SP5250
|
Performance
| spreading distance |
725 mm
|
| spreading distance |
28,5 in
|
| max. pulling force |
15.062 lbf
|
| max. pulling force |
67 / 6.8 (kN/t)
|
| pulling distance |
610 mm
|
| pulling distance |
24 in
|
| max. spreading force |
82.280 lbf
|
| max. spreading force |
366 / 37.3 (kN/t)
|
| theoretical calculated spreading force |
670 / 68.3 (kN/t)
|
| theoretical calculated spreading force |
150.622 lbf
|
| min. spreading force (EN 13204) |
11.465 lbf
|
| min. spreading force (EN 13204) |
51 / 5.2 (kN/t)
|
| max. spreading force, 25mm/1in from the tip |
127 kN
|
| max. spreading force, 25mm/1in from the tip |
13 t
|
| max. spreading force, 25mm/1in from the tip |
28.551 lbf
|
| max. spreading force, 25mm/1in from the tip |
127 / 13 (kN/t)
|
| max. squeezing force |
30.349 lbf
|
| max. squeezing force |
135 / 13.8 (kN/t)
|
| vibration level |
< 2.5 m/s²
|
| directives |
2006/42/EC
|
General specifications
| required oil content (effective) |
291 cc
|
| required oil content (effective) |
9,8 oz
|
| hydraulic oil type |
ISO-L HV VG 15/22
|
| battery type for light |
AA 1.5 V
|
Dimensions, weight and temperature
| weight, ready for use |
15,9 kg
|
| weight, ready for use |
35,1 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
826 x 285 x 215 mm
|
| dimensions (AxBxC) |
32.5 x 11.2 x 8.5 in
|
Safety factors / tests
| hydraulic safety factor |
2:1
|
| endurance test tool |
1000 cycles of opening and closing while arms are loaded
|
| endurance test dead man’s handle |
6000 cycles
|
Norms
| EN 13204 classification |
AS51/725-15.9
|
| NFPA 1936, HPF |
67 kN
|
| NFPA 1936, HPF |
6,8 t
|
| NFPA 1936, HPF |
15.062 lbf
|
| NFPA 1936, HPF |
67 / 6.8 (kN/t)
|
| NFPA 1936, HSF |
97 kN
|
| NFPA 1936, HSF |
9,9 t
|
| NFPA 1936, HSF |
21.806 lbf
|
| NFPA 1936, HSF |
97 / 9.9 (kN/t)
|
| NFPA 1936, LPF |
31 kN
|
| NFPA 1936, LPF |
3,2 t
|
| NFPA 1936, LPF |
6.969 lbf
|
| NFPA 1936, LPF |
31 / 3.2 (kN/t)
|
| NFPA 1936, LSF |
46 kN
|
| NFPA 1936, LSF |
4,7 t
|
| NFPA 1936, LSF |
10.341 lbf
|
| NFPA 1936, LSF |
46 / 4.7 (kN/t)
|
| NFPA 1936 compliant |
yes
|
