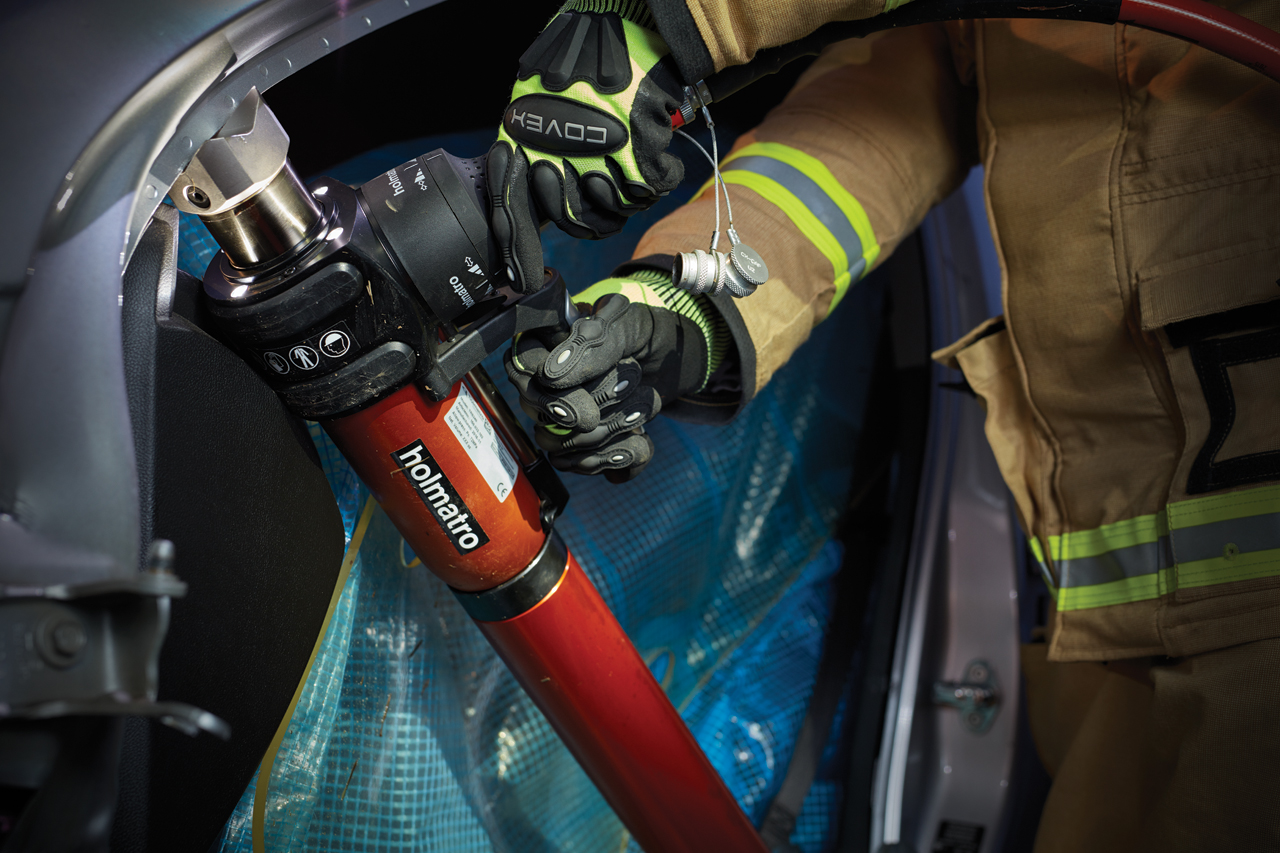

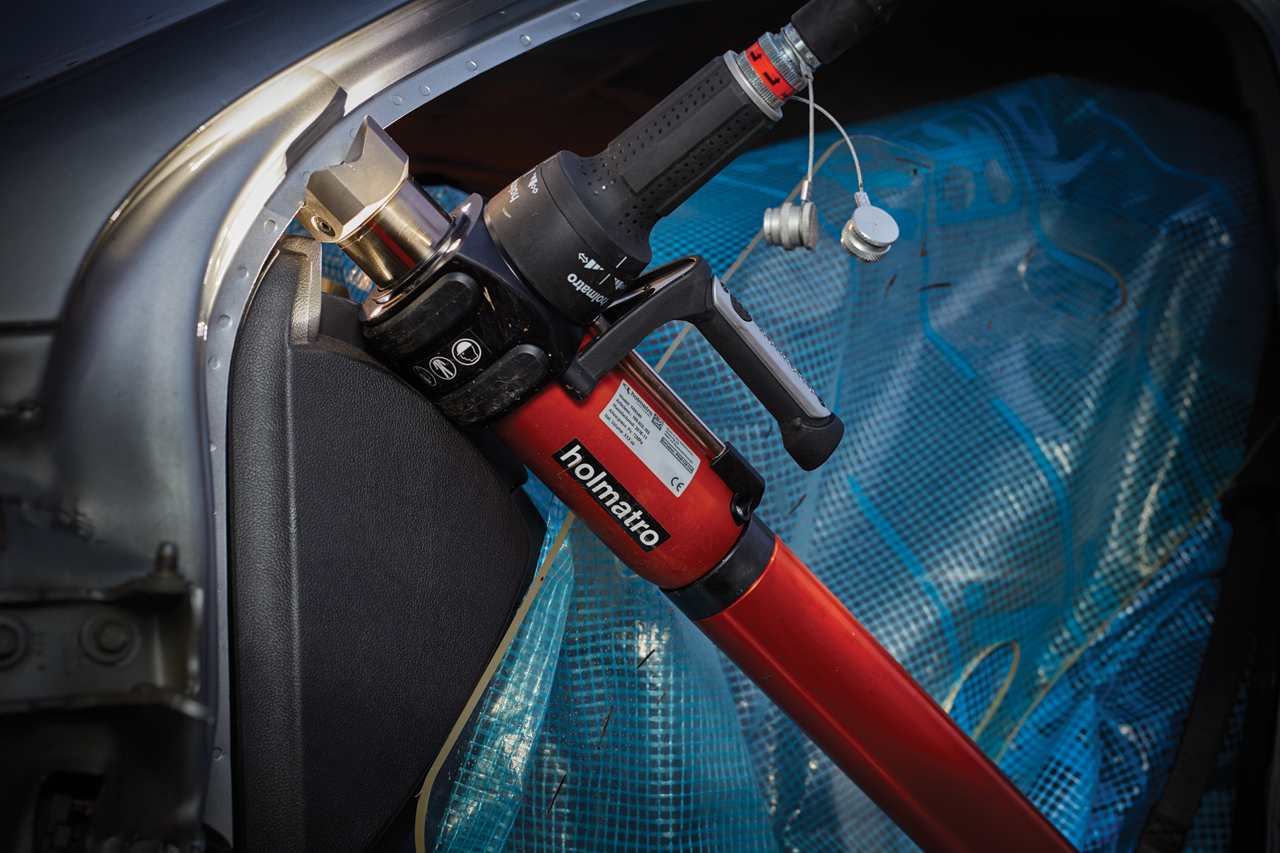

Basic specifications
| model |
TR 5340 LP
|
| equipped with (connector type) |
CORE
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
TR5340LP
|
Performance
| spreading stroke 1st plunger |
150 mm
|
| spreading stroke 1st plunger |
5,9 in
|
| spreading stroke 2nd plunger |
125 mm
|
| spreading stroke 2nd plunger |
4,9 in
|
| total spreading stroke |
275 mm
|
| total spreading stroke |
10,8 in
|
| retracted length |
335 mm
|
| retracted length |
13,2 in
|
| extended length |
610 mm
|
| extended length |
24 in
|
| max. spreading force 1st plunger |
48.784 lbf
|
| max. spreading force 1st plunger |
217 / 22.1 (kN/t)
|
| max. spreading force 2nd plunger |
22.706 lbf
|
| max. spreading force 2nd plunger |
101 / 10.3 (kN/t)
|
General specifications
| required oil content (effective) |
525 cc
|
| required oil content (effective) |
17,8 oz
|
| hydraulic oil type |
ISO-L HV VG 15/22
|
| number of plungers |
2
|
| battery type for light |
1,5v AA
|
Dimensions, weight and temperature
| weight, ready for use |
9,2 kg
|
| weight, ready for use |
20,3 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
280 x 109 x 335 mm
|
| dimensions (AxBxC) |
11 x 4.3 x 13.2 in
|
Safety factors / tests
| hydraulic safety factor |
2:1
|
| endurance test tool |
1000 cycles of spreading while the tool is loaded
|
| endurance test dead man’s handle |
6000 cycles
|
Norms
| EN 13204 classification |
TR217/150-101/125-9.2
|
| EN 13204 compliant |
yes
|
| NFPA 1936, HSF |
217 kN
|
| NFPA 1936, HSF |
22,1 t
|
| NFPA 1936, HSF |
48.784 lbf
|
| NFPA 1936, HSF |
217 / 22.1 (kN/t)
|
| NFPA 1936, LSF |
101 kN
|
| NFPA 1936, LSF |
10,3 t
|
| NFPA 1936, LSF |
22.706 lbf
|
| NFPA 1936, LSF |
101 / 10.3 (kN/t)
|
| NFPA 1936 compliant |
yes
|
