Basic specifications
| model |

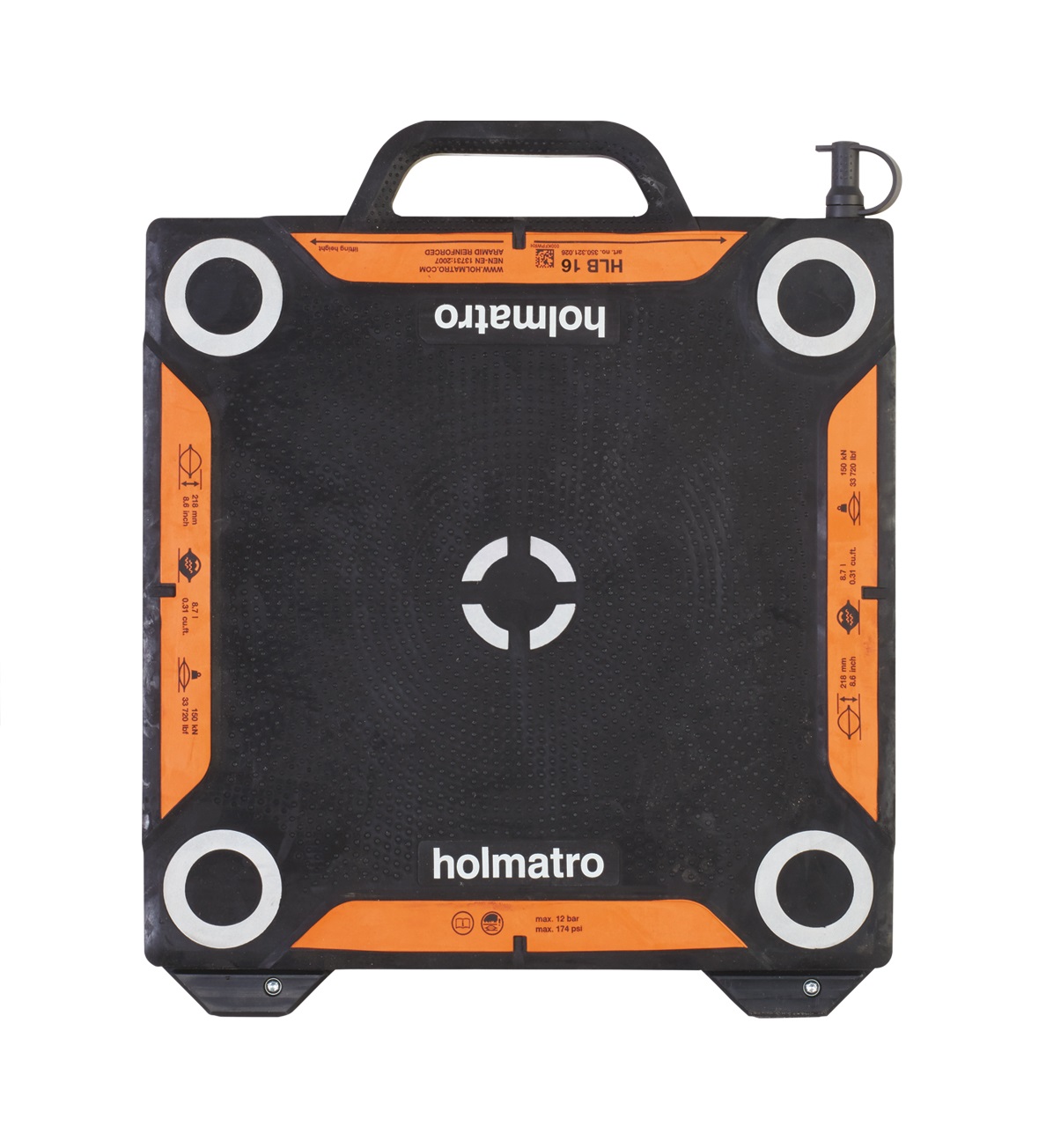

HLB 16
|
| max. working pressure |
174 psi
|
| max. working pressure |
12 / 1.2 (bar/Mpa)
|
| key words |
HLB16
|
Performance
| max. lifting capacity |
155 kN
|
| max. lifting capacity |
15,8 t
|
| max. lifting capacity |
34.845 lbf
|
| max. inflation height |
236 mm
|
| max. inflation height |
9,3 in
|
| thickness incl. profile |
25 mm
|
| thickness incl. profile |
1 in
|
| max. lifting capacity |
155 / 15.8 (kN/t)
|
| max. lifting capacity (12 bar/174 psi) |
155 kN
|
| max. lifting capacity (12 bar/174 psi) |
15,8 t
|
| max. lifting capacity (12 bar/174 psi) |
34.845 lbf
|
| max. lifting capacity (12 bar/174 psi) |
155 / 15.8 (kN/t)
|
| max. lifting capacity (8 bar/116 psi) |
103 kN
|
| max. lifting capacity (8 bar/116 psi) |
10,5 t
|
| max. lifting capacity (8 bar/116 psi) |
23.155 lbf
|
| max. lifting capacity (8 bar/116 psi) |
103 / 10.5 (kN/t)
|
General specifications
| air content (12 bar/174 psi) |
104,4 l
|
| air content (12 bar/174 psi) |
27,6 gal
|
| air content (12 bar/174 psi) |
3,7 cu ft
|
| air content (8 bar/116 psi) |
69,6 l
|
| air content (8 bar/116 psi) |
18,4 gal
|
| air content (8 bar/116 psi) |
2,5 cu ft
|
| water content |
8,7 l
|
| water content |
2,3 gal
|
| water content |
0,3 cu ft
|
| min. bursting pressure |
696 psi
|
| connection |
ISO 6150 C
|
| min. bursting pressure |
48 / 4.8 (bar/Mpa)
|
| material |
reinforced with 3 aramide inlays
|
Dimensions, weight and temperature
| weight, ready for use |
4,5 kg
|
| weight, ready for use |
9,9 lb
|
| dimensions (AxBxC) |
467 x 390 x 25 mm
|
| dimensions (AxBxC) |
18.4 x 15.4 x 1 in
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
