Basic specifications
| model |

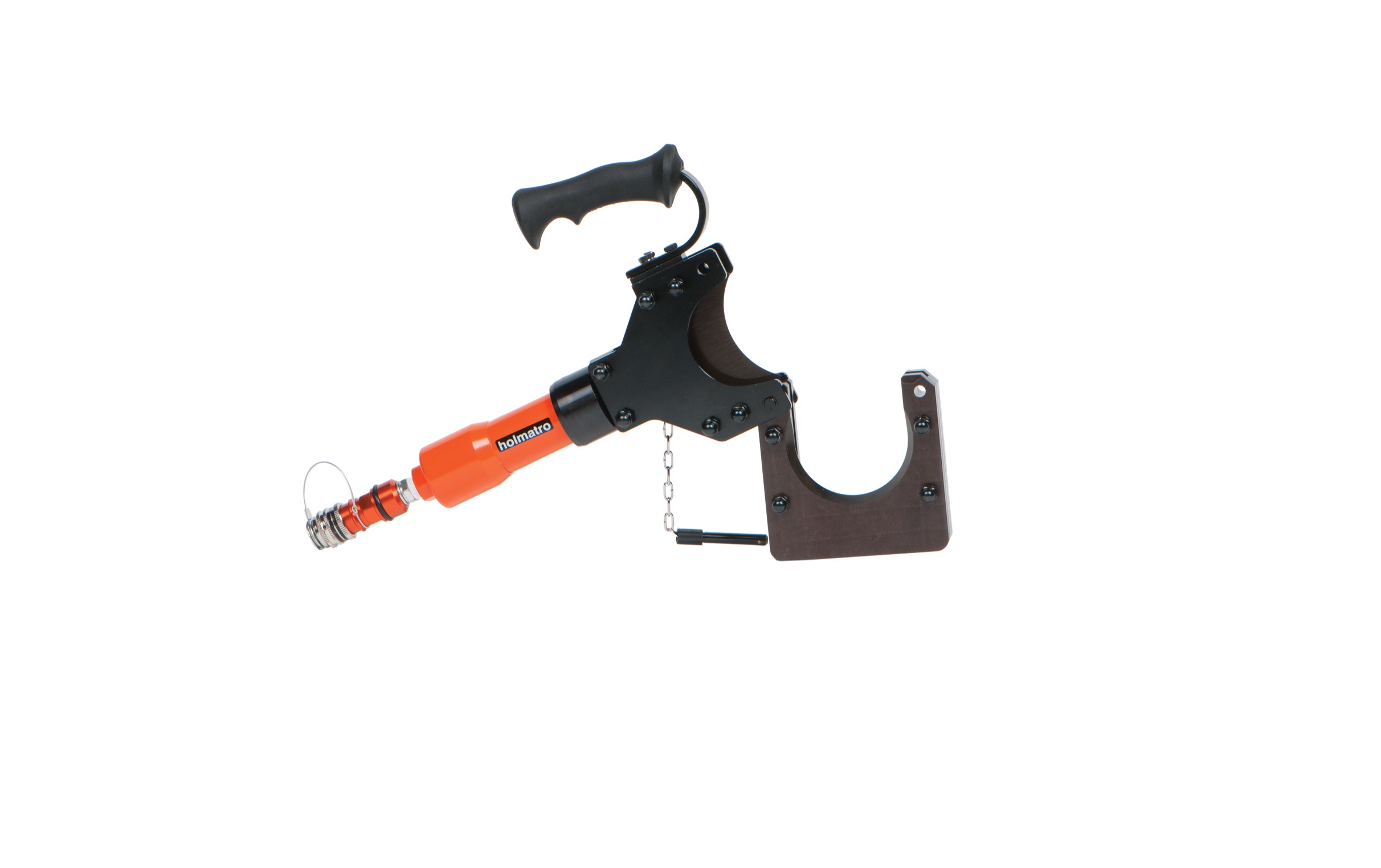

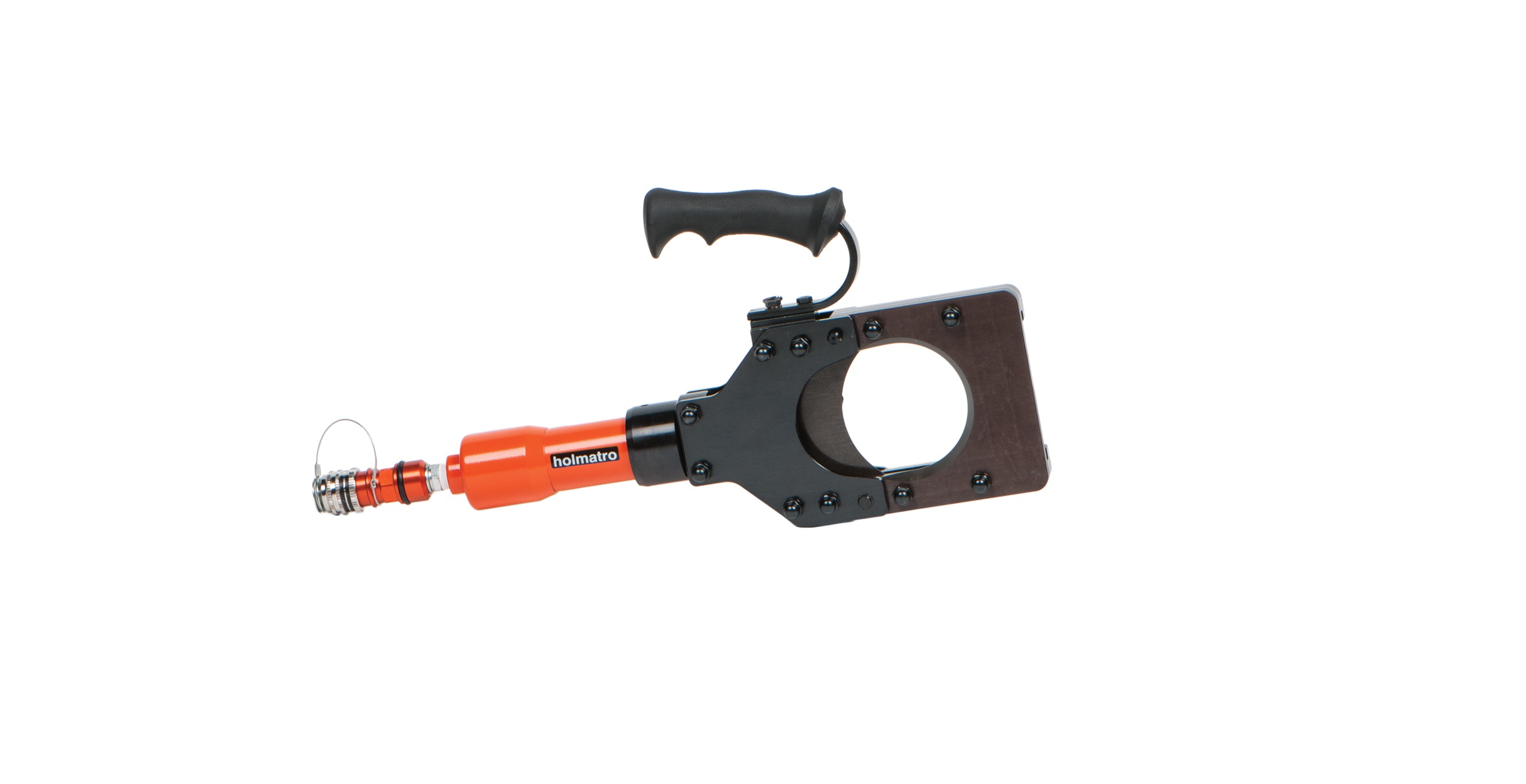

HCC 85 R
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
HCC85R
|
Performance
| capacity |
11.016 lbf
|
| max. jaw opening |
85 mm
|
| max. jaw opening |
3,3 in
|
| capacity Ø ground cable |
50 mm
|
| capacity Ø ground cable |
2 in
|
| capacity Ø telephone cable |
85 mm
|
| capacity Ø telephone cable |
3,3 in
|
| capacity |
49 / 5 (kN/t)
|
General specifications
| required oil content (effective) |
65 cc
|
| required oil content (effective) |
2,2 oz
|
| return type |
spring
|
Dimensions, weight and temperature
| weight, ready for use |
6,8 kg
|
| weight, ready for use |
15 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
501 x 77 x 245 mm
|
| dimensions (AxBxC) |
19.7 x 3 x 9.6 in
|
