Basic specifications
| model |

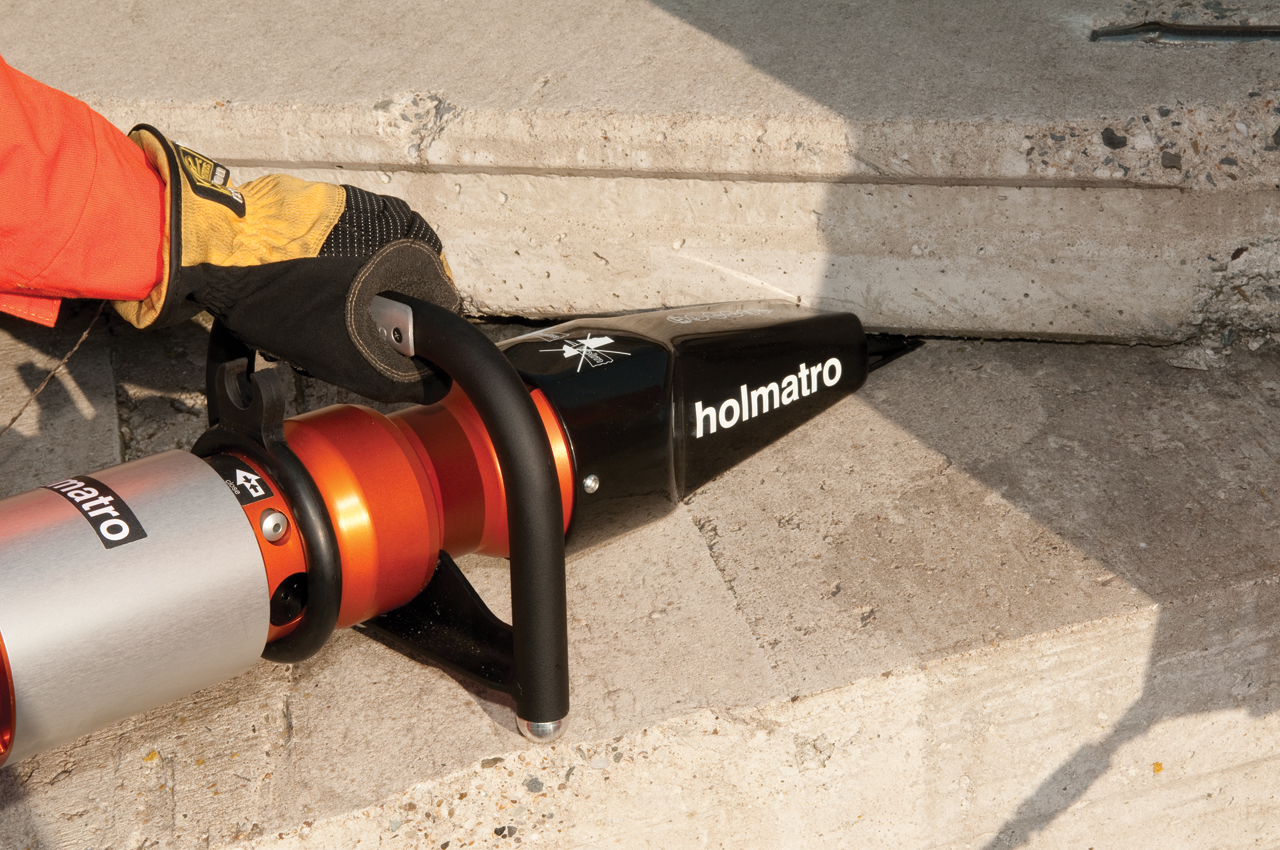

HPW 4624
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
HPW4624
|
Performance
| max. spreading force |
52.830 lbf
|
| min. insertion space |
6 mm
|
| min. insertion space |
0,2 in
|
| max. lifting height |
51 mm
|
| max. lifting height |
2 in
|
| wedge angle |
15 °
|
| max. spreading force |
235 / 24 (kN/t)
|
Dimensions, weight and temperature
| weight, ready for use |
11,8 kg
|
| weight, ready for use |
26 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
713 x 270 x 197 mm
|
| dimensions (AxBxC) |
28.1 x 10.6 x 7.8 in
|
Safety factors / tests
| hydraulic safety factor |
2:1
|
| endurance test tool |
1000 cycles of lifting while tool is loaded
|
| endurance test dead man’s handle |
6000 cycles
|
