Basic specifications
| model |

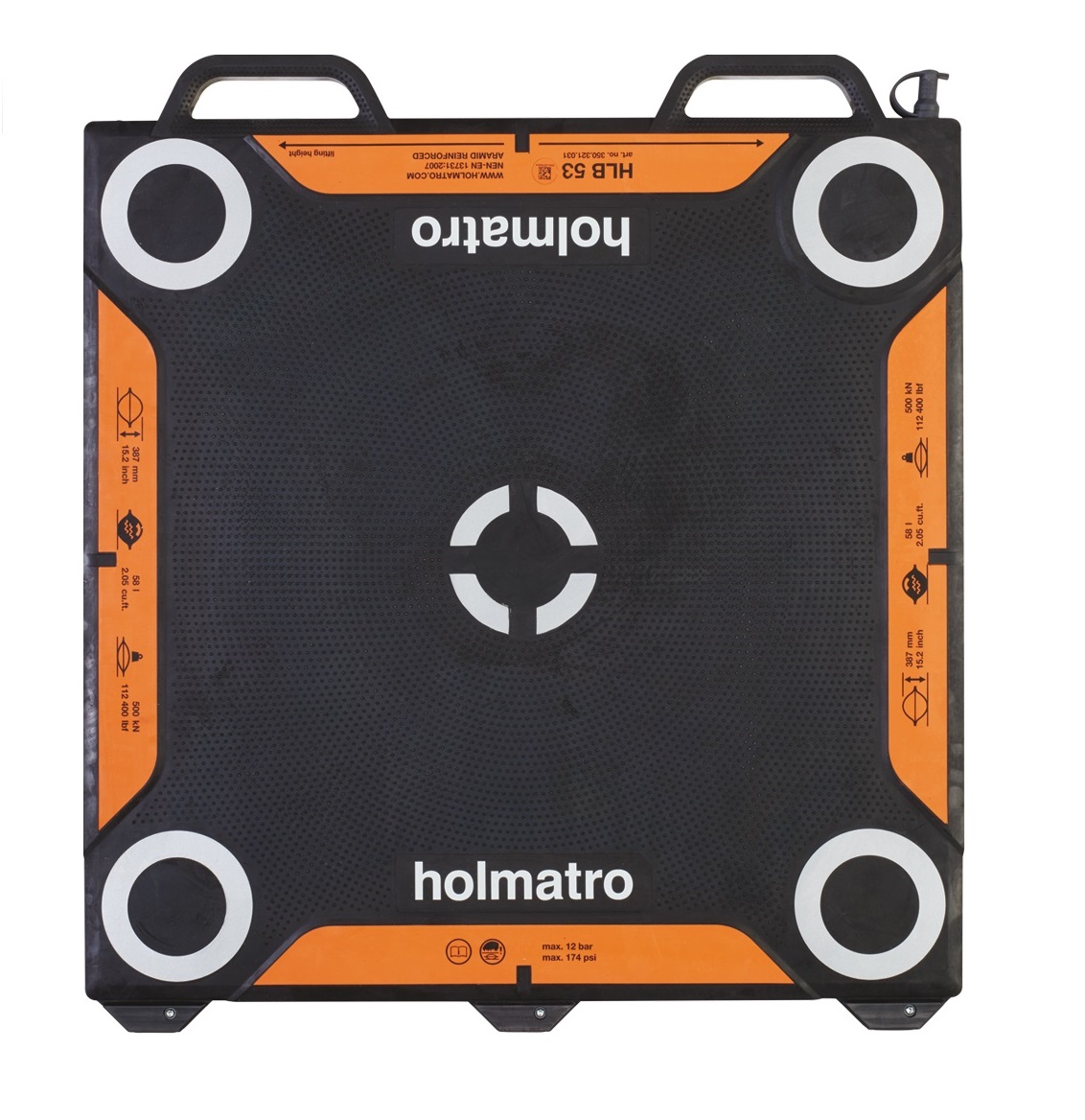

HLB 53
|
| max. working pressure |
174 psi
|
| max. working pressure |
12 / 1.2 (bar/Mpa)
|
| key words |
HLB53
|
Performance
| max. lifting capacity |
520 kN
|
| max. lifting capacity |
53 t
|
| max. lifting capacity |
116.901 lbf
|
| max. inflation height |
411 mm
|
| max. inflation height |
16,2 in
|
| thickness incl. profile |
27 mm
|
| thickness incl. profile |
1,1 in
|
| max. lifting capacity |
520 / 53 (kN/t)
|
| max. lifting capacity (12 bar/174 psi) |
520 kN
|
| max. lifting capacity (12 bar/174 psi) |
53 t
|
| max. lifting capacity (12 bar/174 psi) |
116.901 lbf
|
| max. lifting capacity (12 bar/174 psi) |
520 / 53 (kN/t)
|
| max. lifting capacity (8 bar/116 psi) |
347 kN
|
| max. lifting capacity (8 bar/116 psi) |
35,4 t
|
| max. lifting capacity (8 bar/116 psi) |
78.009 lbf
|
| max. lifting capacity (8 bar/116 psi) |
347 / 35.4 (kN/t)
|
General specifications
| air content (12 bar/174 psi) |
692 l
|
| air content (12 bar/174 psi) |
182,8 gal
|
| air content (12 bar/174 psi) |
24,4 cu ft
|
| air content (8 bar/116 psi) |
462 l
|
| air content (8 bar/116 psi) |
122 gal
|
| air content (8 bar/116 psi) |
16,3 cu ft
|
| water content |
58 l
|
| water content |
15,3 gal
|
| water content |
2 cu ft
|
| min. bursting pressure |
696 psi
|
| connection |
ISO 6150 C
|
| min. bursting pressure |
48 / 4.8 (bar/Mpa)
|
| material |
reinforced with 3 aramide inlays
|
Dimensions, weight and temperature
| weight, ready for use |
15 kg
|
| weight, ready for use |
33,1 lb
|
| dimensions (AxBxC) |
767 x 690 x 27 mm
|
| dimensions (AxBxC) |
30.2 x 27.2 x 1.1 in
|
| thread hole |
M6 threadsize
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
Norms
| EN 13731 compliant |
Yes
|
