Basic specifications
| model |

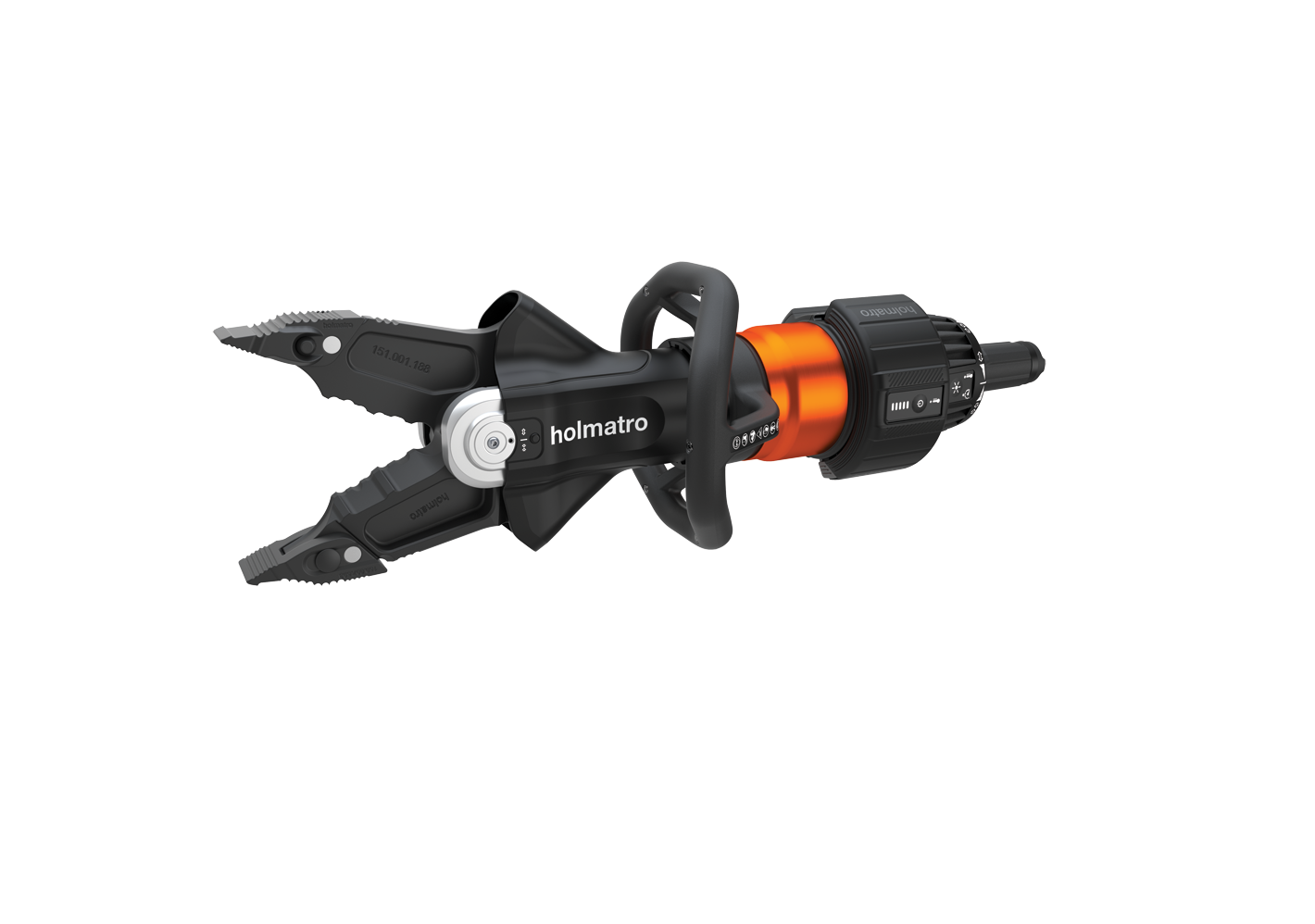

PCT50
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| battery included |
no
|
Performance
| spreading distance |
380 mm
|
| spreading distance |
15 in
|
| max. cutting opening |
320 mm
|
| max. cutting opening |
12,6 in
|
| pulling distance |
254 mm
|
| pulling distance |
10 in
|
| max. spreading force |
418.145 lbf
|
| max. spreading force |
1860 / 189.7 (kN/t)
|
| min. spreading force (EN 13204) |
9.667 lbf
|
| min. spreading force (EN 13204) |
43 / 4.4 (kN/t)
|
| theoretical cutting force |
150.622 lbf
|
| theoretical cutting force |
670 / 68.3 (kN/t)
|
| max. squeezing force |
19.558 lbf
|
| max. squeezing force |
87 / 8.9 (kN/t)
|
| max. pulling force |
23.380 lbf
|
| max. pulling force |
104 / 10.6 (kN/t)
|
| protection rate |
IP57
|
| sound emission @ 1m/3.25ft |
77 dB(A)
|
| sound emission @ 4m/13ft |
68 dB(A)
|
| vibration level |
<2.5 m/s²
|
| directives |
2006/42/EC, 2014/30/EU
|
General specifications
| hydraulic oil type |
ISO-L HV VG 36
|
Dimensions, weight and temperature
| weight, ready for use |
20,3 kg
|
| weight, ready for use |
44,8 lb
|
| weight excl. battery |
18,8 kg
|
| weight excl. battery |
41,4 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
898 x 268 x 273 mm
|
| dimensions (AxBxC) |
35.4 x 10.6 x 10.7 in
|
Safety factors / tests
| hydraulic safety factor |
2:1
|
| endurance test tool |
1000 cycles of spreading and pulling while the tool is loaded and 1000 cycles of biting in material that cannot be cut
|
| endurance test dead man’s handle |
6000 cycles
|
Norms
| EN 13204 compliant |
yes
|
| EN 13204 classification |
CK43/380J-20.3
|
| EN 13204, cutting capacity |
1J 2J 3K 4K 5K
|
| NFPA 1936 compliant |
yes
|
| NFPA 1936, cutting capacity |
A7 B8 C8 D8 E8
|
| NFPA 1936, HPF |
104 kN
|
| NFPA 1936, HPF |
10,6 t
|
| NFPA 1936, HPF |
23.380 lbf
|
| NFPA 1936, HPF |
104 / 10.6 (kN/t)
|
| NFPA 1936, LPF |
79,7 kN
|
| NFPA 1936, LPF |
8,1 t
|
| NFPA 1936, LPF |
17.917 lbf
|
| NFPA 1936, LPF |
79.7 / 8.1 (kN/t)
|
| NFPA 1936, HSF |
42,5 kN
|
| NFPA 1936, HSF |
4,3 t
|
| NFPA 1936, HSF |
9.554 lbf
|
| NFPA 1936, HSF |
42.5 / 4.3 (kN/t)
|
| NFPA 1936, LSF |
32,9 kN
|
| NFPA 1936, LSF |
3,4 t
|
| NFPA 1936, LSF |
7.396 lbf
|
| NFPA 1936, LSF |
32.9 / 3.4 (kN/t)
|
Cutting performance
| round bar (S235 acc. to EN 13204) |
36 mm
|
| round bar (S235 acc. to EN 13204) |
1,4 in
|
