Basic specifications
| model |

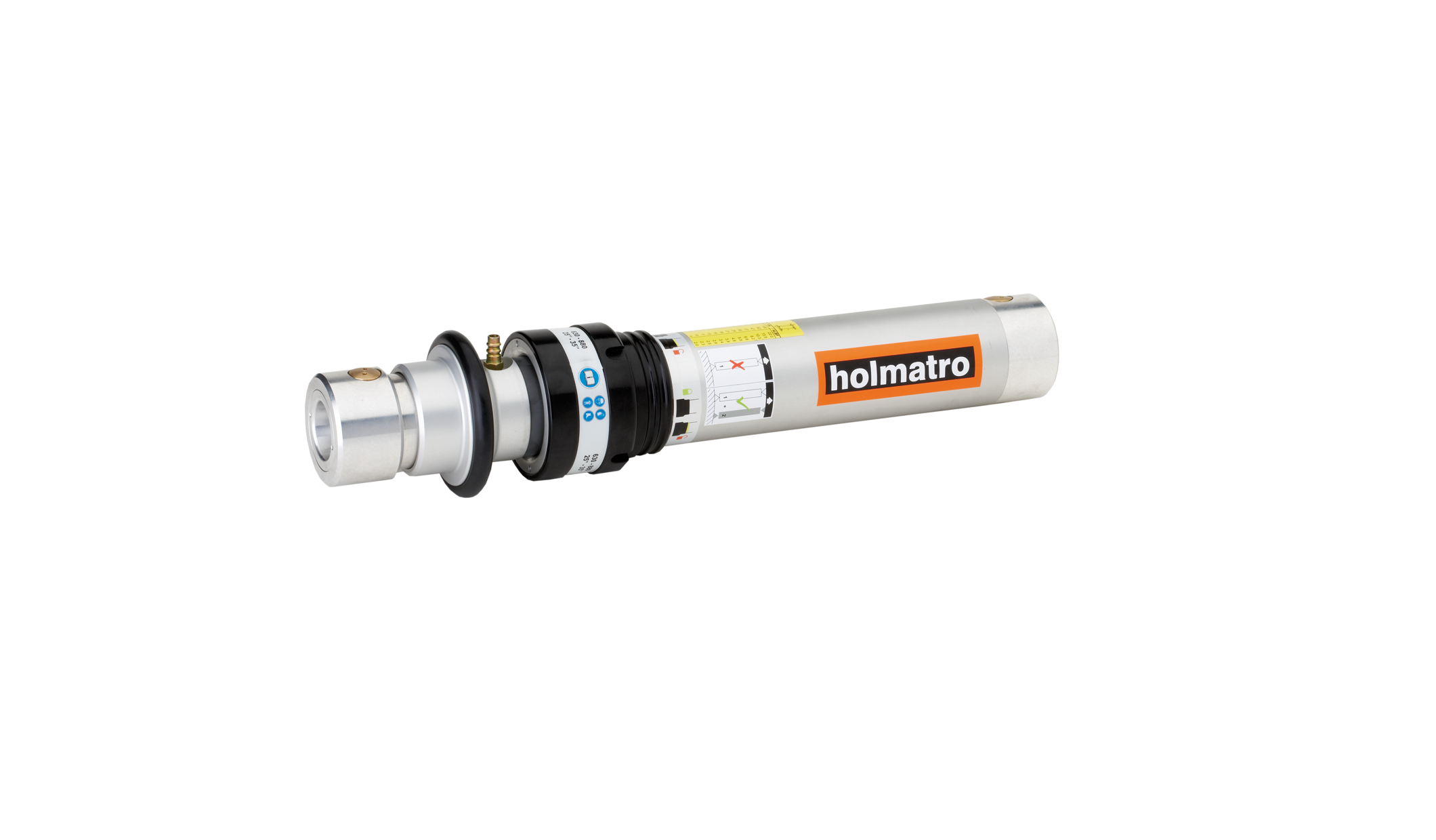

AS 3 Q 5 FL
|
| max. working pressure |
116 psi
|
| locking system |
auto-lock
|
| strut type |
pneumatic
|
| max. working pressure |
8 / 0.8 (bar/Mpa)
|
| key words |
AS3Q5FL
|
Performance
| stroke |
252 mm
|
| stroke |
9,9 in
|
| force at working pressure |
899 lbf
|
| max. air content |
20,4 l
|
| max. air content |
5,4 gal
|
| max. water content |
2,3 l
|
| max. water content |
0,6 gal
|
| retracted length |
632 mm
|
| retracted length |
24,9 in
|
| force at working pressure |
4 / 0.4 (kN/t)
|
Dimensions, weight and temperature
| weight, ready for use |
8,4 kg
|
| weight, ready for use |
18,5 lb
|
| dimensions (AxBxC) |
632 x 132 x 132 mm
|
| dimensions (AxBxC) |
24.9 x 5.2 x 5.2 in
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
