Basic specifications
| model |

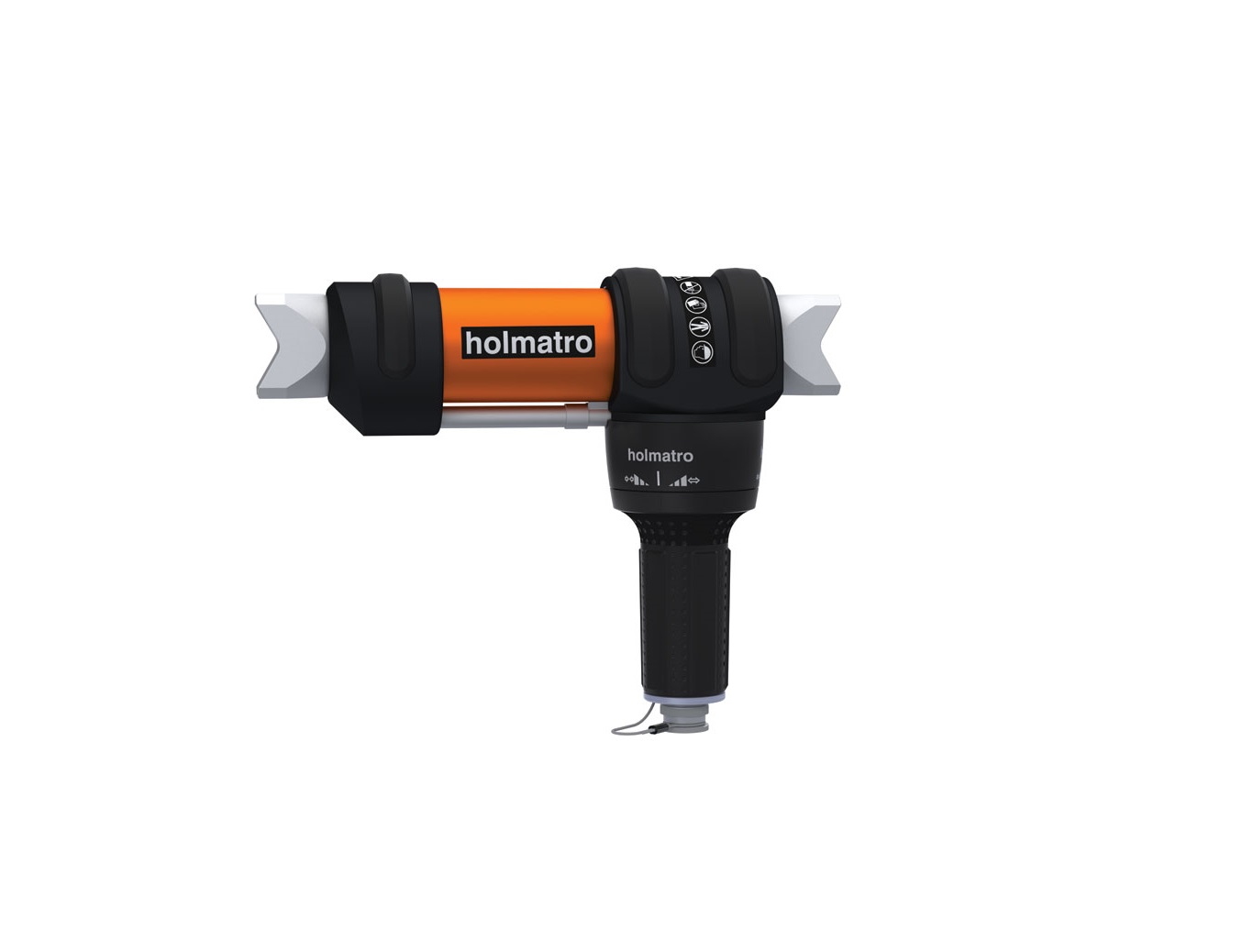

RA 5311 CL
|
| equipped with (connector type) |
CORE
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
RA5311CL
|
Performance
| spreading stroke |
150 mm
|
| spreading stroke |
5,9 in
|
| retracted length |
320 mm
|
| retracted length |
12,6 in
|
| extended length |
470 mm
|
| extended length |
18,5 in
|
| spreading force over full stroke |
22.481 lbf
|
| spreading force over full stroke |
100 / 10.2 (kN/t)
|
| directives |
2006/42/EG
|
General specifications
| required oil content (effective) |
144 cc
|
| required oil content (effective) |
4,9 oz
|
| hydraulic oil type |
ISO-L HV VG 15/22
|
| number of plungers |
1
|
| battery type for light |
AA 1.5V
|
Dimensions, weight and temperature
| weight, ready for use |
6,4 kg
|
| weight, ready for use |
14,1 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
256 x 100 x 320 mm
|
| dimensions (AxBxC) |
10.1 x 3.9 x 12.6 in
|
Safety factors / tests
| hydraulic safety factor |
2:1
|
| endurance test tool |
1000 cycles of spreading while the tool is loaded
|
| endurance test dead man’s handle |
6000 cycles
|
Norms
| EN 13204 classification |
R100/150-6.4
|
| EN 13204 compliant |
yes
|
| NFPA 1936, HSF |
100 kN
|
| NFPA 1936, HSF |
10,2 t
|
| NFPA 1936, HSF |
22.481 lbf
|
| NFPA 1936, HSF |
100 / 10.2 (kN/t)
|
| NFPA 1936, LSF |
100 kN
|
| NFPA 1936, LSF |
10,2 t
|
| NFPA 1936, LSF |
22.481 lbf
|
| NFPA 1936, LSF |
100 / 10.2 (kN/t)
|
| NFPA 1936 compliant |
yes
|
