Basic specifications
| model |

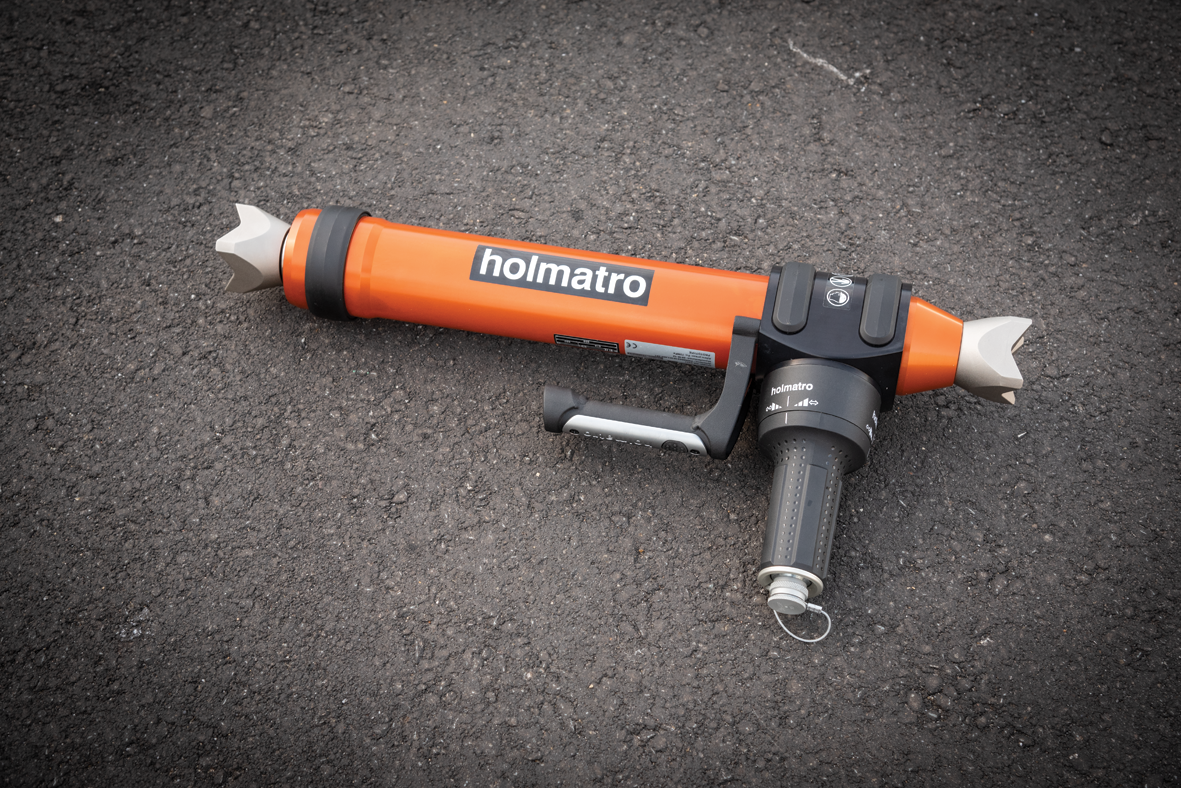

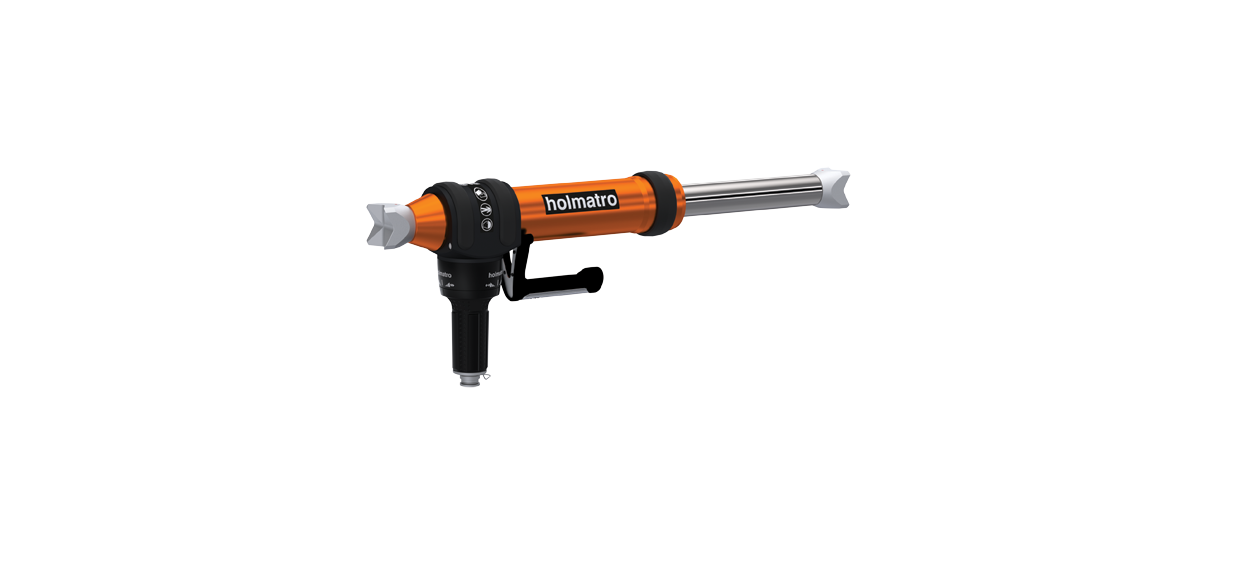

RA 5321
|
| equipped with (connector type) |
CORE
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
RA5321
|
Performance
| spreading / pulling stroke |
250 mm
|
| spreading / pulling stroke |
9,8 in
|
| retracted length |
515 mm
|
| retracted length |
20,3 in
|
| extended length |
765 mm
|
| extended length |
30,1 in
|
| spreading force over full stroke |
33.721 lbf
|
| spreading force over full stroke |
150 / 15.3 (kN/t)
|
| pulling force over full stroke |
6.295 lbf
|
| pulling force over full stroke |
28 / 2.9 (kN/t)
|
| max. spreading force, 1st section (NFPA 1936, HSF) |
150 kN
|
| max. spreading force, 1st section (NFPA 1936, HSF) |
15,3 t
|
| max. spreading force, 1st section (NFPA 1936, HSF) |
33.721 lbf
|
| max. spreading force, 1st section (NFPA 1936, HSF) |
150 / 15.3 (kN/t)
|
General specifications
| required oil content (effective) |
415 cc
|
| required oil content (effective) |
14 oz
|
| hydraulic oil type |
ISO-L HV VG 15/22
|
| number of plungers |
1
|
| battery type for light |
AA 1.5V
|
Dimensions, weight and temperature
| weight, ready for use |
10,7 kg
|
| weight, ready for use |
23,6 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
280 x 105 x 515 mm
|
| dimensions (AxBxC) |
11 x 4.1 x 20.3 in
|
Safety factors / tests
| hydraulic safety factor |
2:1
|
| endurance test tool |
1000 cycles of spreading and pulling while the tool is loaded
|
| endurance test dead man’s handle |
6000 cycles
|
Norms
| EN 13204 classification |
R150/250-10.7
|
| EN 13204 compliant |
yes
|
| NFPA 1936, HPF |
28 kN
|
| NFPA 1936, HPF |
2,9 t
|
| NFPA 1936, HPF |
6.295 lbf
|
| NFPA 1936, HPF |
28 / 2.9 (kN/t)
|
| NFPA 1936, HSF |
150 kN
|
| NFPA 1936, HSF |
15,3 t
|
| NFPA 1936, HSF |
33.721 lbf
|
| NFPA 1936, HSF |
150 / 15.3 (kN/t)
|
| NFPA 1936, LPF |
28 kN
|
| NFPA 1936, LPF |
2,9 t
|
| NFPA 1936, LPF |
6.295 lbf
|
| NFPA 1936, LPF |
28 / 2.9 (kN/t)
|
| NFPA 1936, LSF |
150 kN
|
| NFPA 1936, LSF |
15,3 t
|
| NFPA 1936, LSF |
33.721 lbf
|
| NFPA 1936, LSF |
150 / 15.3 (kN/t)
|
| NFPA 1936 compliant |
yes
|
