Basic specifications
| model |

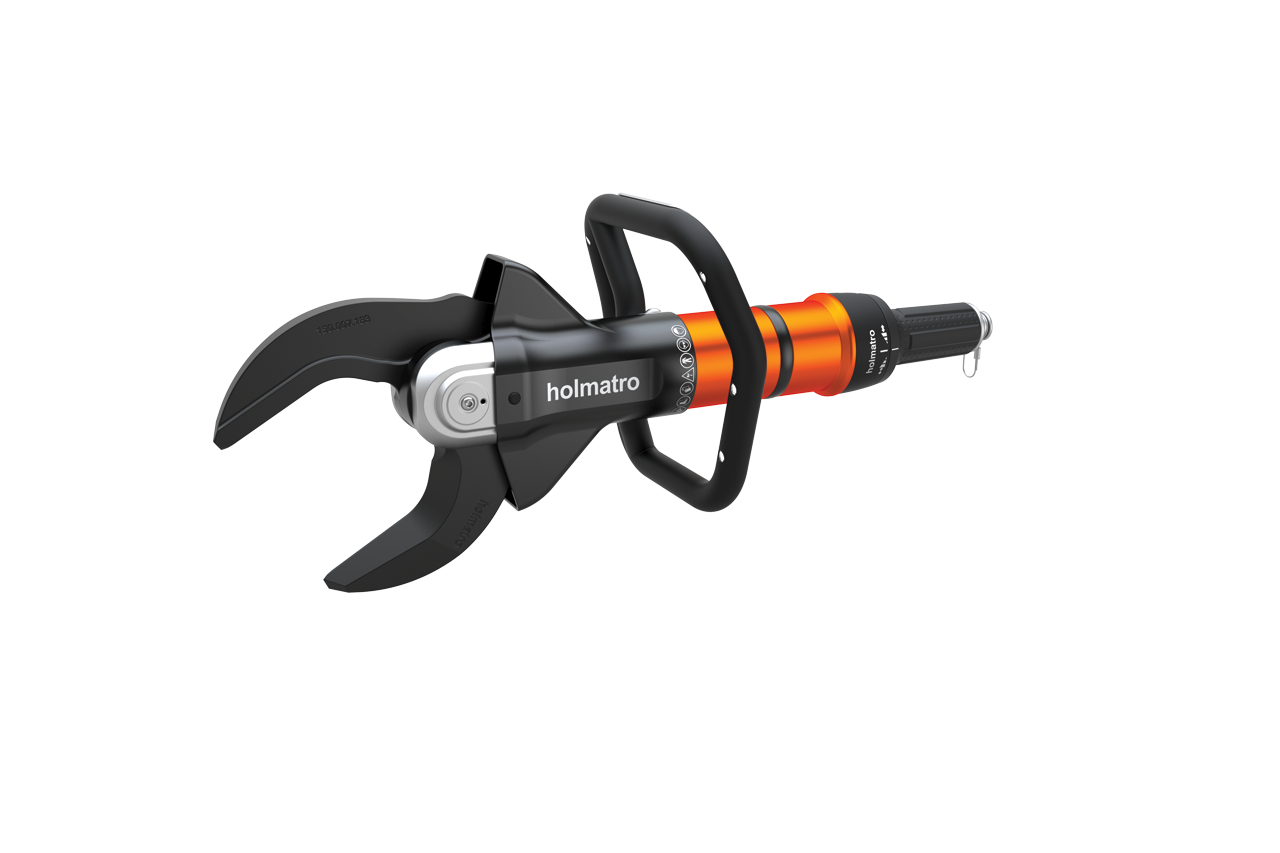

CU 5030 i CL
|
| equipped with (connector type) |
CORE
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
CU5030iCL
|
Performance
| max. cutting opening |
170 mm
|
| max. cutting opening |
6,7 in
|
| theoretical cutting force |
123.420 lbf
|
| theoretical cutting force |
549 / 56 (kN/t)
|
| vibration level |
<2,5 m/s²
|
| directives |
2006/42/EC
|
General specifications
| required oil content (effective) |
155 cc
|
| required oil content (effective) |
5,2 oz
|
| hydraulic oil type |
ISO-L HV VG 15/22
|
| battery type for light |
AA 1,5 V
|
| NCT |
yes
|
| cutter jaw |
inclined
|
Dimensions, weight and temperature
| weight, ready for use |
9,5 kg
|
| weight, ready for use |
20,9 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
685 x 275 x 253 mm
|
| dimensions (AxBxC) |
27 x 10.8 x 10 in
|
Safety factors / tests
| hydraulic safety factor |
2:1
|
| endurance test tool |
1000 cycles of biting in material that cannot be cut
|
| endurance test dead man’s handle |
6000 cycles
|
Norms
| EN 13204 compliant |
yes
|
| EN 13204 classification |
BC150F-9.5
|
| EN 13204, cutting capacity |
1H 2G 3G 4F 5G
|
| NFPA 1936 compliant |
yes
|
| NFPA 1936, cutting capacity |
A6 B5 C6 D6 E6
|
Cutting performance
| round bar (S235 acc. to EN 13204) |
31 mm
|
| round bar (S235 acc. to EN 13204) |
1,2 in
|
