Basic specifications
| model |

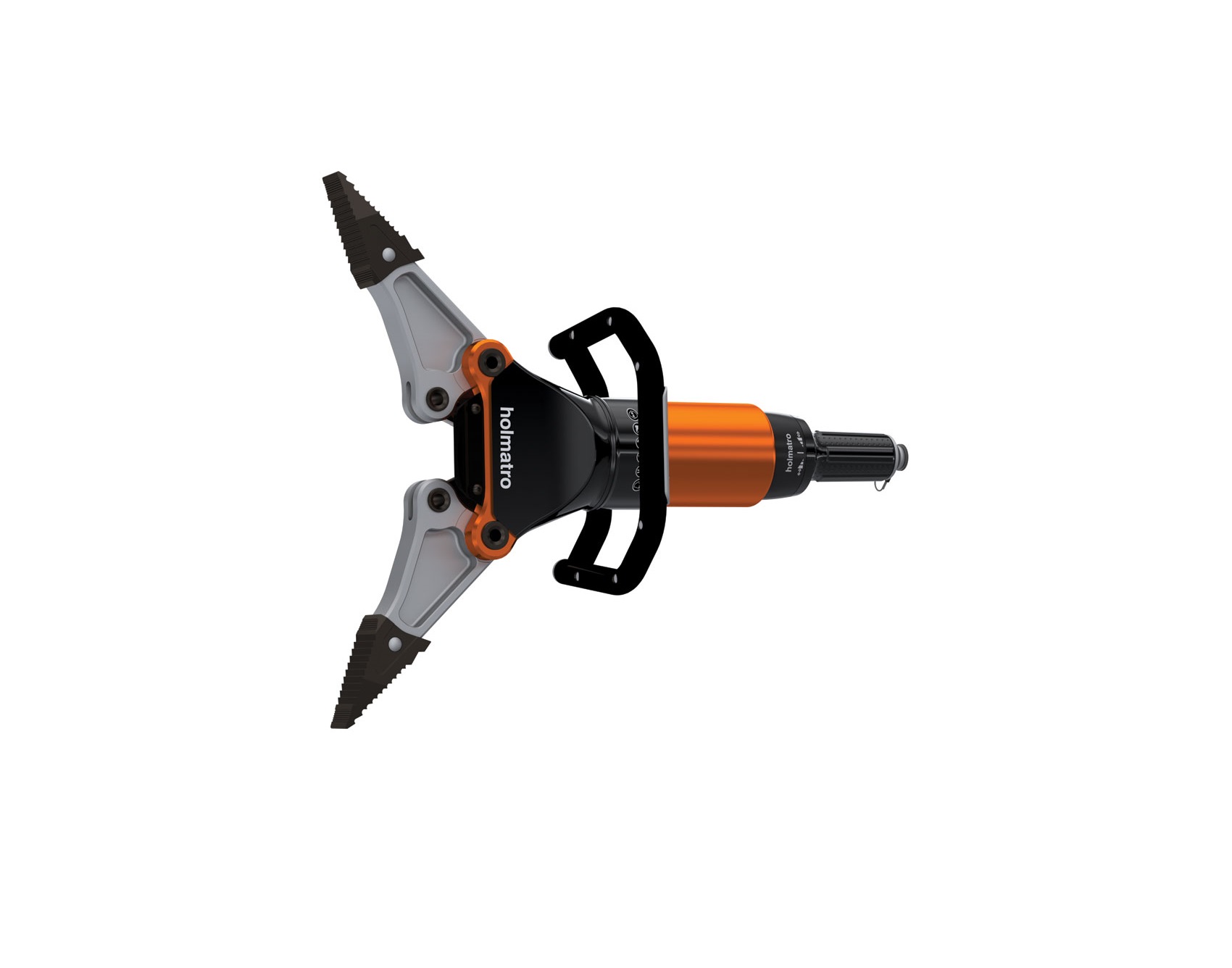

SP 5240 CL
|
| equipped with (connector type) |
CORE
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
SP5240CL
|
Performance
| spreading distance |
510 mm
|
| spreading distance |
20,1 in
|
| max. pulling force |
10.566 lbf
|
| max. pulling force |
47 / 4.8 (kN/t)
|
| pulling distance |
393 mm
|
| pulling distance |
15,5 in
|
| max. spreading force |
29.450 lbf
|
| max. spreading force |
131 / 13.4 (kN/t)
|
| theoretical calculated spreading force |
850 / 86.7 (kN/t)
|
| theoretical calculated spreading force |
191.088 lbf
|
| min. spreading force (EN 13204) |
8.992 lbf
|
| min. spreading force (EN 13204) |
40 / 4.1 (kN/t)
|
| max. spreading force, 25mm/1in from the tip |
70 kN
|
| max. spreading force, 25mm/1in from the tip |
7,1 t
|
| max. spreading force, 25mm/1in from the tip |
15.737 lbf
|
| max. spreading force, 25mm/1in from the tip |
70 / 7.1 (kN/t)
|
| max. squeezing force |
10.566 lbf
|
| max. squeezing force |
47 / 4.8 (kN/t)
|
| vibration level |
< 2.5 m/s²
|
| directives |
2006/42/EC
|
General specifications
| required oil content (effective) |
124 cc
|
| required oil content (effective) |
4,2 oz
|
| hydraulic oil type |
ISO-L HV VG 15/22
|
| battery type for light |
AA 1.5 V
|
Dimensions, weight and temperature
| weight, ready for use |
9,6 kg
|
| weight, ready for use |
21,2 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
685 x 274 x 207 mm
|
| dimensions (AxBxC) |
27 x 10.8 x 8.2 in
|
Safety factors / tests
| hydraulic safety factor |
2:1
|
| endurance test tool |
1000 cycles of opening and closing while arms are loaded
|
| endurance test dead man’s handle |
6000 cycles
|
Norms
| NFPA 1936, HPF |
47 kN
|
| NFPA 1936, HPF |
4,8 t
|
| NFPA 1936, HPF |
10.566 lbf
|
| NFPA 1936, HPF |
47 / 4.8 (kN/t)
|
| NFPA 1936, HSF |
53 kN
|
| NFPA 1936, HSF |
5,4 t
|
| NFPA 1936, HSF |
11.915 lbf
|
| NFPA 1936, HSF |
53 / 5.4 (kN/t)
|
| NFPA 1936, LPF |
24 kN
|
| NFPA 1936, LPF |
2,4 t
|
| NFPA 1936, LPF |
5.395 lbf
|
| NFPA 1936, LPF |
24 / 2.4 (kN/t)
|
| NFPA 1936, LSF |
35 kN
|
| NFPA 1936, LSF |
3,6 t
|
| NFPA 1936, LSF |
7.868 lbf
|
| NFPA 1936, LSF |
35 / 3.6 (kN/t)
|
| NFPA 1936 compliant |
yes
|
