Basic specifications
| model |

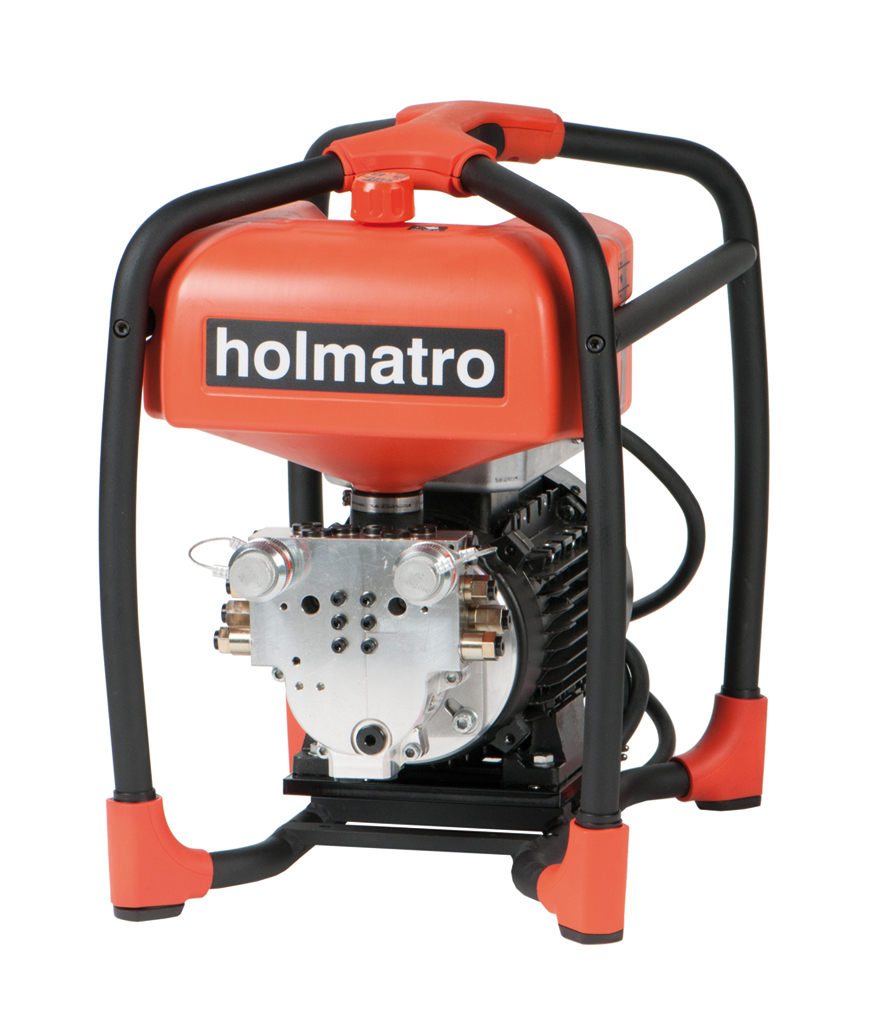

SR 20 DC 2
|
| equipped with (connector type) |
CORE
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
SR20DC2
|
Performance
| number of stages |
3
|
| first stage pressure range min. |
0 psi
|
| first stage pressure range max. |
2.176 psi
|
| first stage pressure range |
0 – 150 / 0 – 15 (bar/Mpa)
|
| first stage pressure range |
0 – 2176 psi
|
| first stage output / min. |
3.000 cc
|
| first stage output / min. |
101,4 oz
|
| second stage pressure range min. |
2.176 psi
|
| second stage pressure range max. |
4.061 psi
|
| second stage pressure range |
150 – 280 / 15 – 28 (bar/Mpa)
|
| second stage output / min. |
1.350 cc
|
| second stage output / min. |
45,6 oz
|
| second stage pressure range |
2176 – 4061 psi
|
| third stage pressure range min. |
4.061 psi
|
| third stage pressure range max. |
10.443 psi
|
| third stage pressure range |
280 – 720 / 28 – 72 (bar/Mpa)
|
| third stage pressure range |
4061 – 10443 psi
|
| third stage output / min. |
575 cc
|
| third stage output / min. |
19,44 oz
|
| sound emission (acc. to EN 13204) |
77 dB(A)
|
| sound emission (unloaded) |
73 dB(A)
|
| capacity oil tank |
4.340 cc
|
| capacity oil tank |
146,8 oz
|
| capacity oil tank (effective) |
4.000 cc
|
| capacity oil tank (effective) |
135,3 oz
|
General specifications
| operator type |
electric motor
|
| number of tool connections |
2
|
| number of tools simultaneously usable |
2
|
| pump type |
3-stage axial pump
|
| engine |
230 VAC – 1.8 kW – 50 Hz – 1 Ph
|
| required power |
7,2 KVA
|
Dimensions, weight and temperature
| weight, ready for use |
34 kg
|
| weight, ready for use |
75 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
455 x 315 x 460 mm
|
| dimensions (AxBxC) |
17.9 x 12.4 x 18.1 in
|
Norms
| EN 13204 classification |
MTO
|
| NFPA 1936 compliant |
yes
|
