Basic specifications
| model |

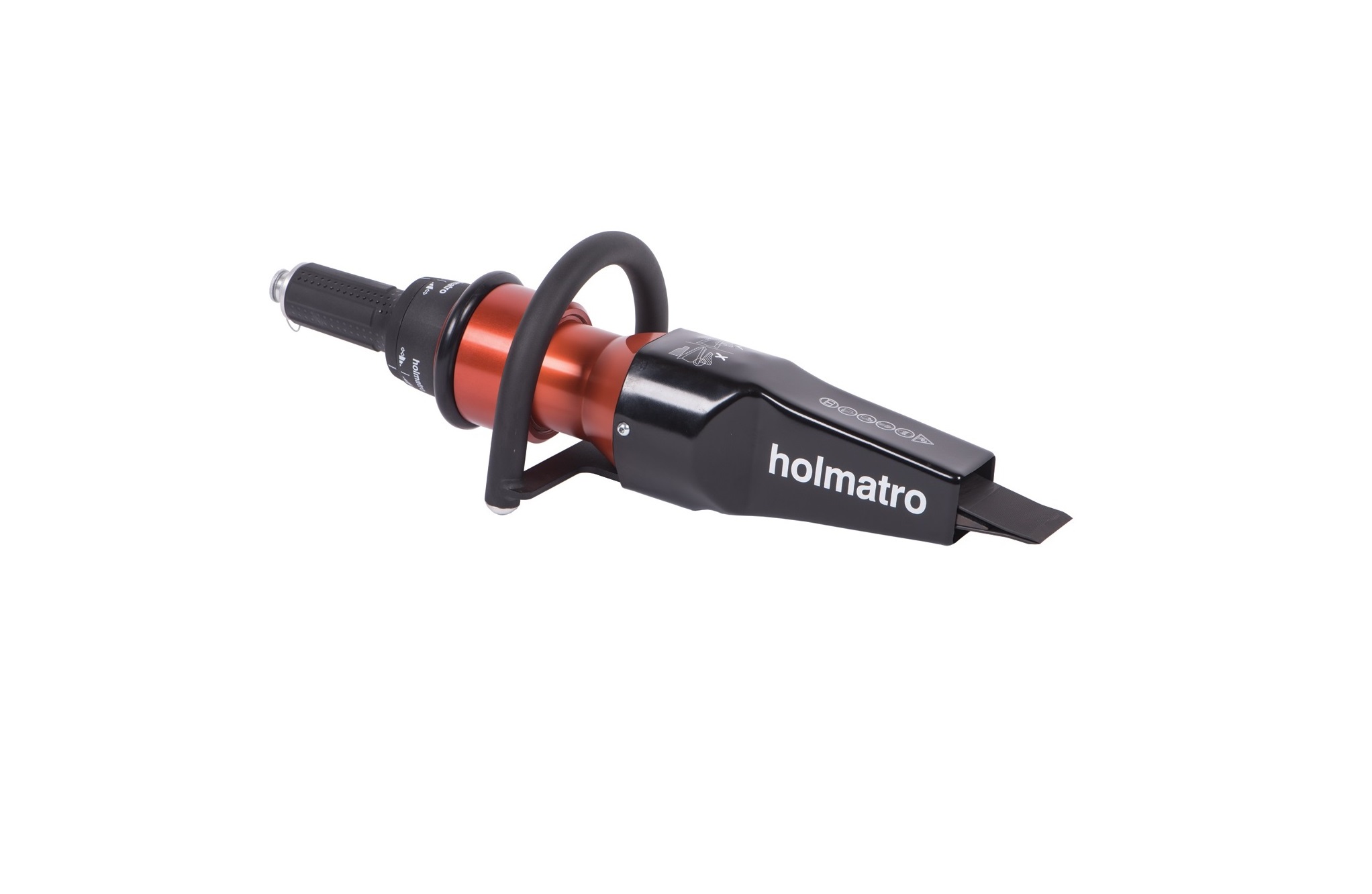

PW 5624
|
| equipped with (connector type) |
CORE
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
PW5624
|
Performance
| max. spreading force |
52.830 lbf
|
| min. insertion space |
6 mm
|
| min. insertion space |
0,2 in
|
| max. lifting height |
51 mm
|
| max. lifting height |
2 in
|
| wedge angle |
15 °
|
| max. spreading force |
235 / 24 (kN/t)
|
General specifications
| required oil content (effective) |
122 cc
|
| required oil content (effective) |
4,1 oz
|
| hydraulic system |
double acting
|
Dimensions, weight and temperature
| weight, ready for use |
9,2 kg
|
| weight, ready for use |
20,3 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
648 x 225 x 188 mm
|
| dimensions (AxBxC) |
25.5 x 8.9 x 7.4 in
|
Safety factors / tests
| hydraulic safety factor |
2:1
|
| endurance test tool |
1000 cycles of lifting while tool is loaded
|
| endurance test dead man’s handle |
6000 cycles
|
