Basic specifications
| model |

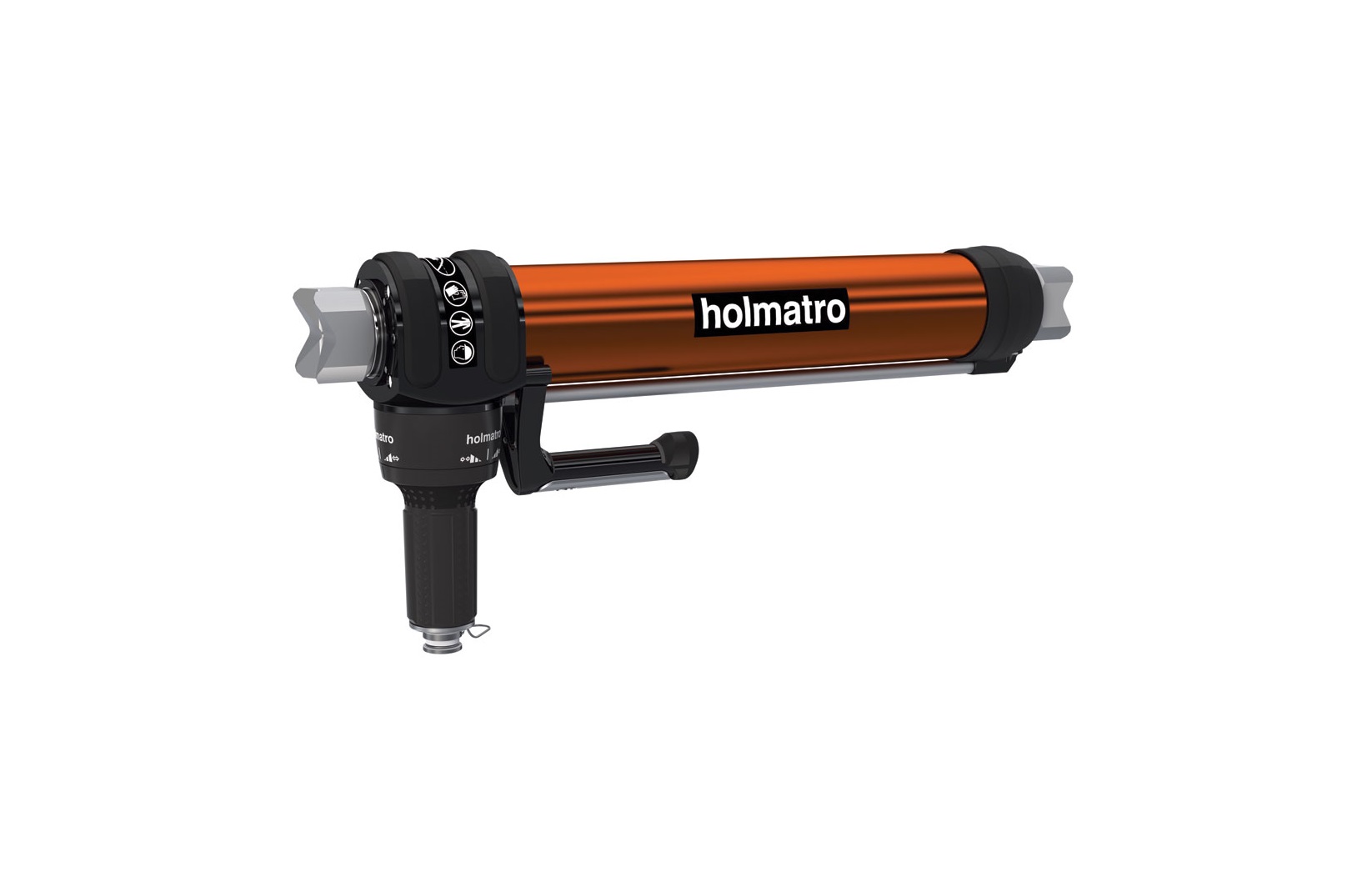

TR 5370 LP
|
| equipped with (connector type) |
CORE
|
| max. working pressure |
10.443 psi
|
| max. working pressure |
720 / 72 (bar/Mpa)
|
| key words |
TR5370LP
|
Performance
| spreading stroke 1st plunger |
450 mm
|
| spreading stroke 1st plunger |
17,7 in
|
| spreading stroke 2nd plunger |
425 mm
|
| spreading stroke 2nd plunger |
16,7 in
|
| total spreading stroke |
875 mm
|
| total spreading stroke |
34,5 in
|
| retracted length |
635 mm
|
| retracted length |
25 in
|
| extended length |
1.510 mm
|
| extended length |
59,5 in
|
| max. spreading force 1st plunger |
51.931 lbf
|
| max. spreading force 1st plunger |
231 / 23.6 (kN/t)
|
| max. spreading force 2nd plunger |
24.954 lbf
|
| max. spreading force 2nd plunger |
111 / 11.3 (kN/t)
|
General specifications
| required oil content (effective) |
1.764 cc
|
| required oil content (effective) |
59,6 oz
|
| hydraulic oil type |
ISO-L HV VG 15/22
|
| number of plungers |
2
|
| battery type for light |
1,5v AA
|
Dimensions, weight and temperature
| weight, ready for use |
16,9 kg
|
| weight, ready for use |
37,3 lb
|
| temperature range |
-20 + 55 °C
|
| temperature range |
-4 + 131 °F
|
| dimensions (AxBxC) |
281 x 109 x 635 mm
|
| dimensions (AxBxC) |
11.1 x 4.3 x 25 in
|
Safety factors / tests
| hydraulic safety factor |
2:1
|
| endurance test tool |
1000 cycles of spreading while the tool is loaded
|
| endurance test dead man’s handle |
6000 cycles
|
Norms
| EN 13204 classification |
TR231/450-111/425-16.9
|
| EN 13204 compliant |
yes
|
| NFPA 1936, HSF |
231 kN
|
| NFPA 1936, HSF |
23,6 t
|
| NFPA 1936, HSF |
51.931 lbf
|
| NFPA 1936, HSF |
231 / 23.6 (kN/t)
|
| NFPA 1936, LSF |
111 kN
|
| NFPA 1936, LSF |
11,3 t
|
| NFPA 1936, LSF |
24.954 lbf
|
| NFPA 1936, LSF |
111 / 11.3 (kN/t)
|
| NFPA 1936 compliant |
yes
|
